K-PO - SW2N

Artikelnummer: 905201

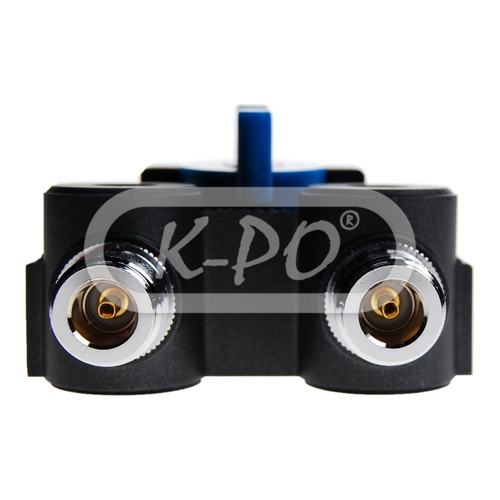

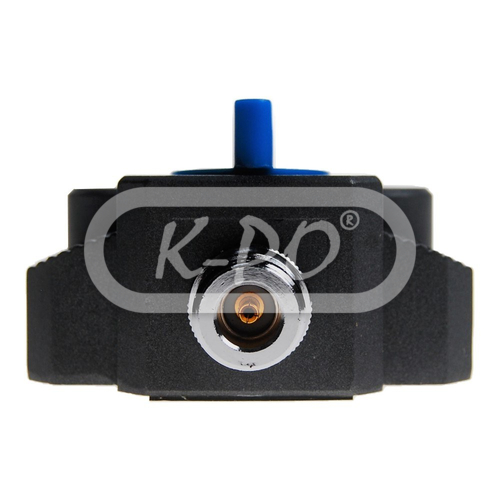

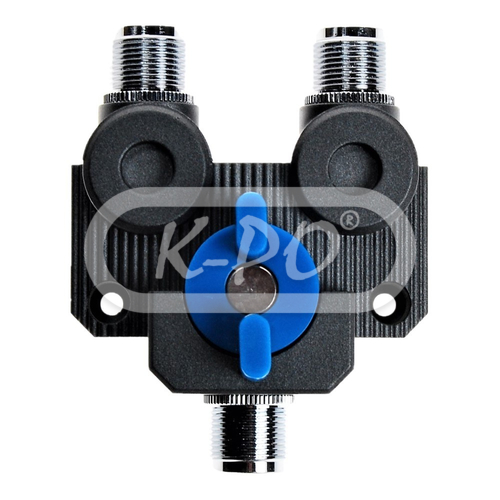

The K-PO SW2N is a 2 way antenna switch with a N female input connector and 2x N female output connectors.

Frequentie bereik: Up to 3.0 GHz

Niet op voorraad - Levertijd in overleg

€ 49,95 (41.28 excl. 21% BTW)

Elektrische eigenschappen

• VSWR: 0-500 MHz: >=1.05 / 500 MHz - 1 GHz: >=1.1 / 1-2 GHz: >=1.15 / 2-3 GHz: >=1.2
• Impedance: 50 Ohm
• Insertion loss: 0-500 MHz: >=0.05dB / 500 MHz - 1 GHz: >=0.1dB / 1-2 GHz: >=0.15dB / 2-3 GHz: >=0.2dB
• Isolation: 0-500 MHz: <=70dB / 500 MHz - 1 GHz: <60dB / 1-2 GHz: <55dB / 2-3 GHz: <50dB
• Power range: 0-30 MHz: 2 kW / 30-200 MHz: 1.0 kW / 200-500 MHz: 500 W / 500 MHz - 1 GHz : 250 W / 1-3 GHz : 150 W

Fysieke eigenschappen

• Connector(s) type in: N female
• Connector(s) type out: N female
• Length: 90 mm
• Height: 70 mm
• Width: 30 mm
• Weight: 550 gram
