K-PO - SW3N

Artikelnummer: 905203

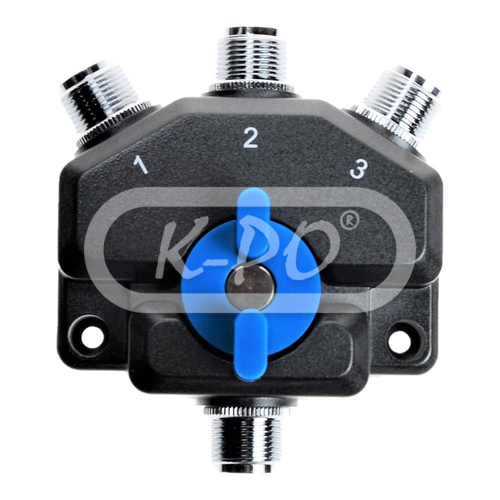

The K-PO SW3N is a 3 way antenna switch with a N female input connector and 3x N female output connectors.

Frequentie bereik: Up to 1.5 GHz

Niet op voorraad - Levertijd in overleg

€ 79,94 (66.07 excl. 21% BTW)

Elektrische eigenschappen

• VSWR: 0-500 MHz: >=1.05 / 500 MHz - 1 GHz: >=1.15 / 1-1.5 GHz : >=1.20
• Impedance: 50 Ohm
• Insertion loss: 0-500 MHz: >=0.05dB / 500 MHz - 1 GHz: >=0.1dB / 1-1.5 GHz: >=0.2dB
• Isolation: 0-500 MHz: <=70dB / 500 MHz - 1 GHz: <=60dB / 1-1.5 GHz: <=60dB
• Power range: 0 - 30 MHz: 1.5 kW / 30 - 200 MHz: 1 kW / 200 - 500 MHz: 500 W / 500 MHz - 1 GHz: 250 W / 1-1.5 GHz: 150 W

Fysieke eigenschappen

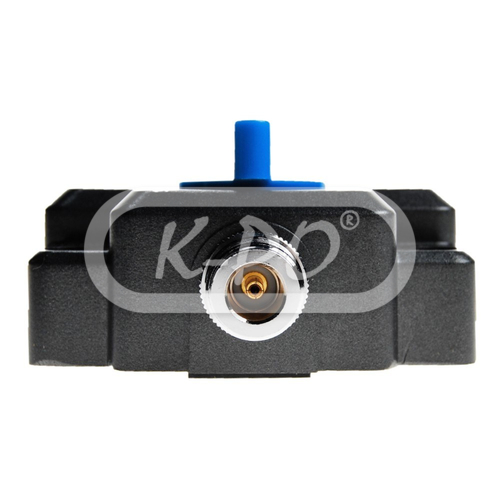

• Connector(s) type in: N female

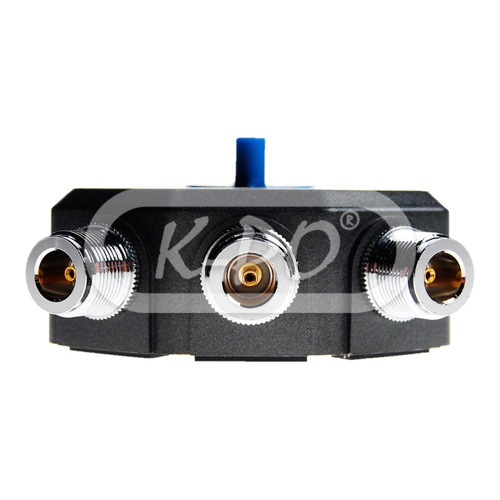

• Connector(s) type out: N female
• Length: 100 mm
• Height: 80 mm
• Width: 30 mm
• Weight: 550 gram
