K-PO - SX-200

K-PO - SX-200

Artikelnummer: 900200
Barcode: 8718375100219

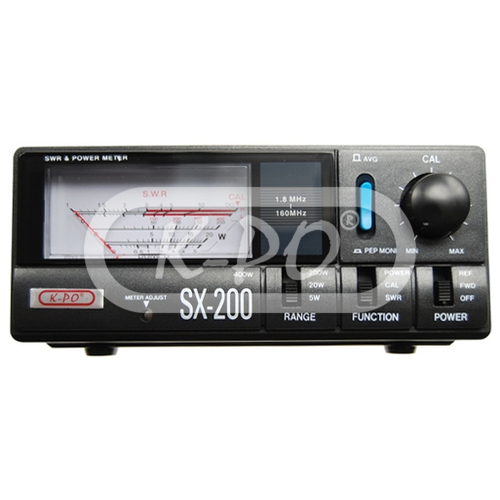

The K-PO SX-200 measures Forward Power, Reflected Power and SWR. AVG / PEP switch to select average power or SSB / PEP. Frequency range of 1.8 - 160 MHz.

It's compact size makes this meter useful for testing both base and mobile installations and for permanent installation in your setup.

Frequentie bereik: 1.8 - 160 MHz
Niet op voorraad - Levertijd in overleg
€ 79,94 (66.07 excl. 21% BTW)

Elektrische eigenschappen

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 5 / 20 / 200 / 400 Watts
  • Accuracy: 5 Watts: ± 5% / 20 Watts: ± 7.5% / 200 Watts: ± 10% / 400 Watts: ± 12.5%
  • Minimum Power for SWR: 0.5 Watt
  • Insertion loss: 0.2 dB
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Voltage: 13.8 Volt, for display lightning only
  • 200 / 400 Watts power switch: Yes, on backside
  • Maximum power handling: 400 Watts 25 sec on, 35 sec off

Fysieke eigenschappen

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 150 mm
  • Height: 65 mm
  • Width: 100 mm
  • Weight: 630 gram

In de verpakking

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English
