K-PO - SX-40

Artikelnummer: 900040

Barcode: 8718375100202

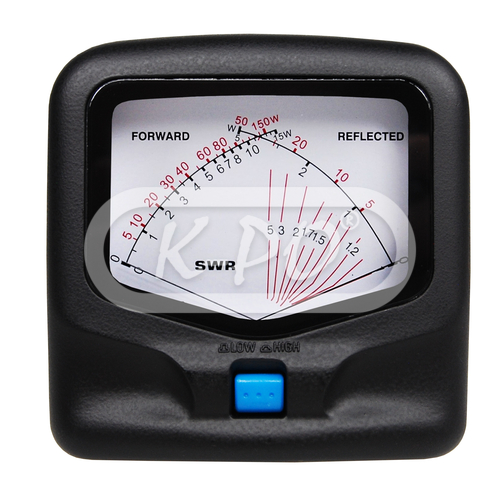

The K-PO SX-40 is a compact SWR and Power meter with a frequency range of 140 - 525 MHz. Featuring cross needle design for measuring SWR and output power simultaneously. Compact size makes it very useful for testing mobiles as well as base station installation.

Frequentie bereik: 140 - 525 MHz

Niet op voorraad - Levertijd in overleg

€ 54,95 (45.41 excl. 21% BTW)

Elektrische eigenschappen

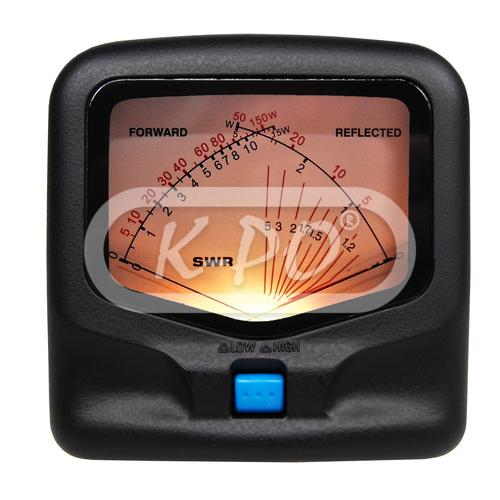

• Backlight display / meter: Yes
• Impedance: 50 Ohm
• Power range: 15 / 150 Watts
• Accuracy: ± 10%
• Minimum Power for SWR: 1 Watt
• Testing function: SWR and Power (FWD and REF)
• Voltage: 13.8 Volt, for display lightning only

Fysieke eigenschappen

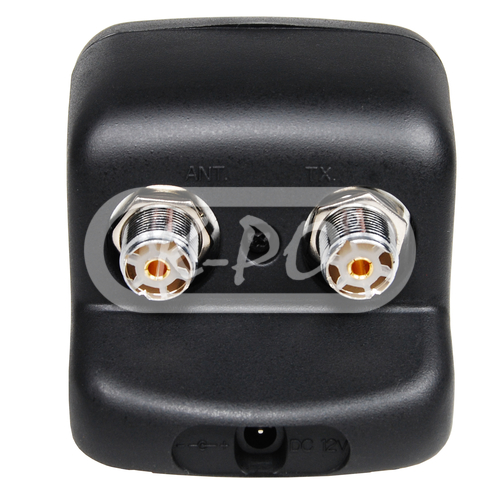

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 95 mm
• Height: 87 mm
• Width: 85 mm
• Weight: 280 gram

In de verpakking

• Meter: Yes
• DC power cable: Yes
• Installation manual: English

Downloads

• Informatieblad: Sx 20 40
