Maas - RX-40

Artikelnummer: 101047

Barcode: 4250158701908

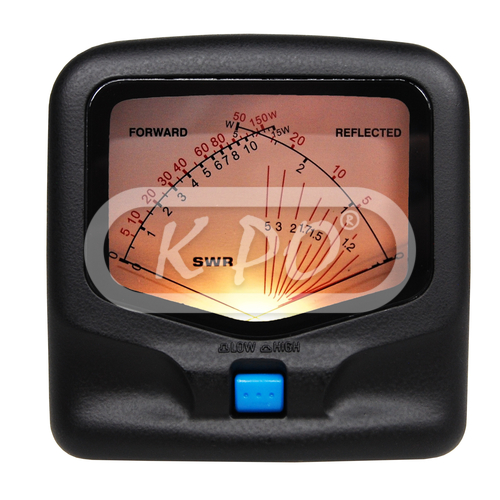

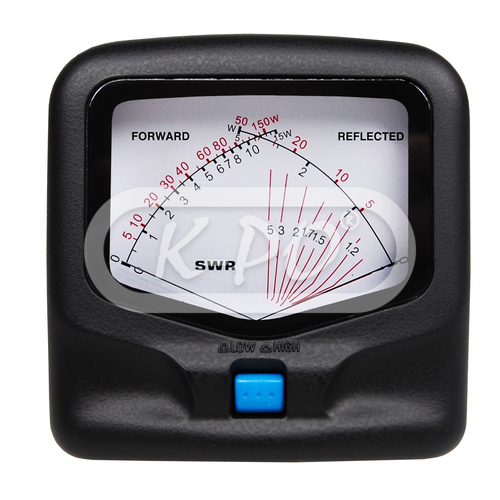

The Maas RX-40 is a compact SWR and Power meter with a frequency range of 140 - 525 MHz. Featuring cross needle design for measuring SWR and output power simultaneously. Compact size makes it very useful for testing mobiles as well as base station installation.

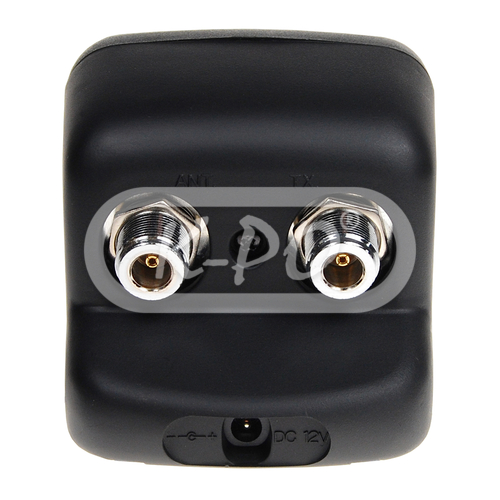

Please note that this meter is equipped with 2x N-female connectors.

Frequentie bereik: 140 - 525 MHz

Niet op voorraad - Levertijd in overleg

€ 59,91 (49.51 excl. 21% BTW)

Elektrische eigenschappen

• Backlight display / meter: Yes
• Impedance: 50 Ohm
• Power range: 15 / 150 Watts
• Accuracy: ± 10%
• Minimum Power for SWR: 1 Watt
• Testing function: SWR and Power (FWD and REF)
• Voltage: 13.8 Volt, for display lightning only

Fysieke eigenschappen

• Input connector: N female
• Output connector: N female
• Length: 95 mm
• Height: 87 mm
• Width: 85 mm
• Weight: 280 gram

In de verpakking

• Meter: Yes
• DC power cable: Yes
• Installation manual: English
