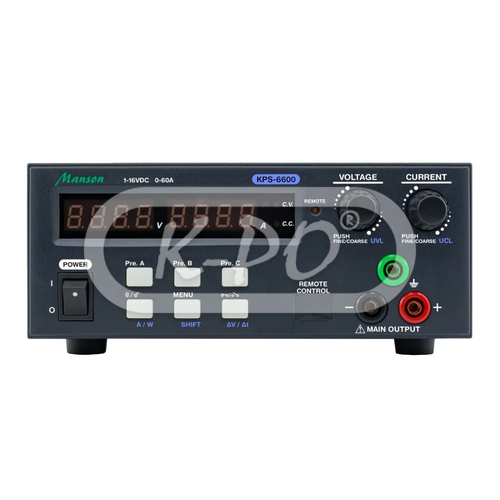

Manson - KPS-6602

Artikelnummer: 81901

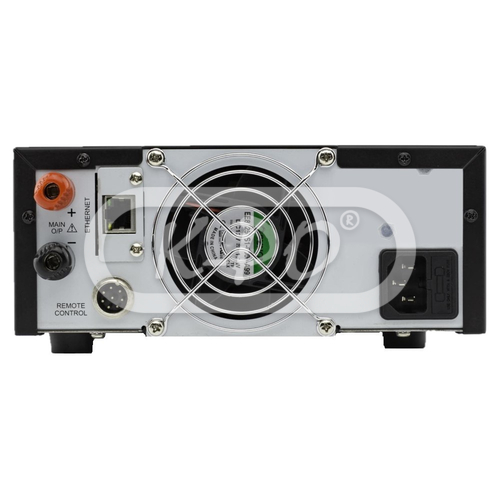

This KPS-6602 of switching mode remote programming power supplies provide power test wave forms from the versatile 10 Step generator which can simulate common test conditions for electronic devices. In addition to the supplied USB communication interface, an optional Ethernet interface card allows users to configure, control, or monitor basic power supply settings over the internet. KPS uses SCPI (Standard Commands of Programmable Instruments) syntax for easy system integration with test equipment.

Vandaag verstuurd - Stock: 1
€ 449,95 (371.86 excl. 21% BTW)

Elektrische eigenschappen

  • Input voltage: 230 Volt / 220 Volt / 50 Hz /
  • Adjustable output voltage: 1-32 Volt
  • Continuous load: 0-30A
  • Peak load: 30A
  • Ripple voltage: ≤5mV
  • Display indicator: Voltage / ampère
  • Background light: Yes
  • Fan: Yes
  • Short circuit protection: Yes
  • Overload protection: Yes
  • Rated output power: 960W
  • Cooling method: Thermostatic control fan from zero to full speed

Fysieke eigenschappen

  • Length: 200 mm
  • Height: 90 mm
  • Width: 332 mm
  • Weight: 3800 gram

In de verpakking

  • Power supply: Yes

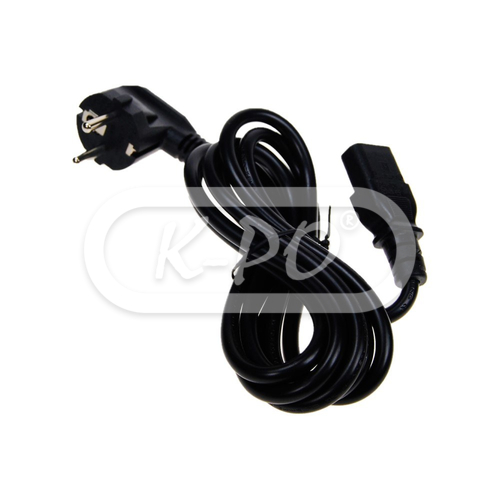

  • AC cord: Yes
  • User manual: English
