Certified European Distributor

Midland - 88

Artikelnummer: 1435
Fabrieksnummer: C1435
Barcode: 8011869203428

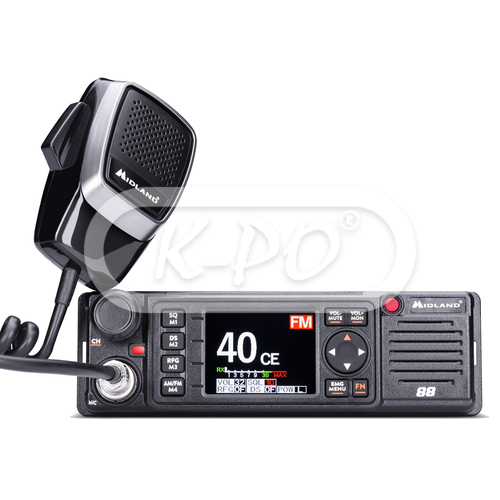

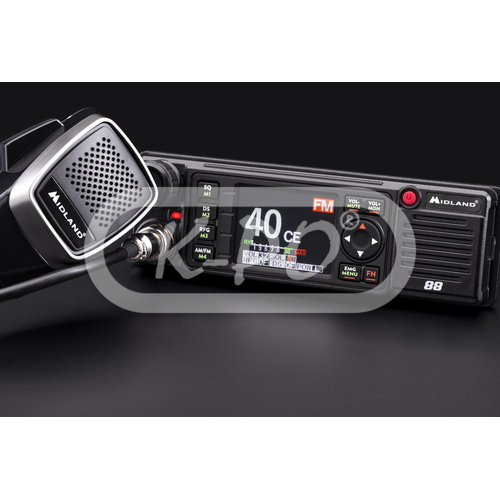

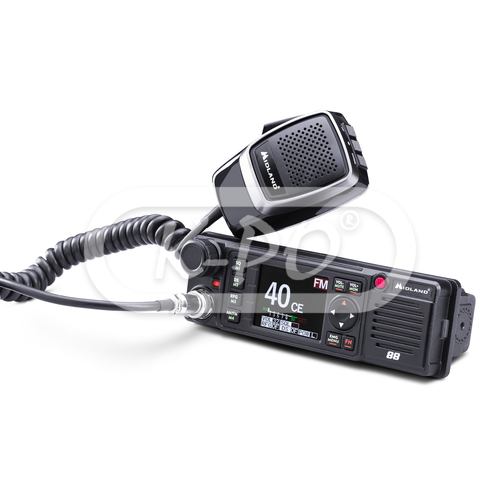

Midland 88 is a versatile CB radio, suitable for any surface and DIN compartment, with 12/24 V power supply and equipped with a SWR meter. With all the accessories included in the package, you can hang it on the windscreen or place it on the dashboard. Midland 88 turns on automatically and with the UP/DOWN/Priority channel keys directly on the microphone, you change channels in the blink of an eye. Midland 88 is multi-band, both FM/AM, therefore suitable to communicate also beyond national borders, adapting to European frequencies. The aluminium chassis makes the device strong and durable and houses a large TFT colour display with visible frequencies.

What about the functions? Lots and lots of them: PA, 4- channel storage, Dual Watch (to find the free channel), Roger Beep (a beep for opening and closing communication), multi-level digital Squelch and Noise Blanker and HIC, the background noise removal filters.

Frequentie bereik: 26.965 - 27.405 MHz
Niet op voorraad - Levertijd in overleg
€ 189,95 (156.98 excl. 21% BTW)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt / Duty cycle 10% @ 13.8V DC
  • Channels: 40 AM / FM
  • Front speaker: Yes
  • Display type: Multi-color backlight
  • VOX Function: Yes
  • Noise blanker: Yes
  • Squelch: DSS (Dynamic Squelch System)
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Hi/Lo power: Yes
  • Scan function: Yes
  • Memory channels: Yes
  • Quick channel selection: Yes
  • External speaker socket: Yes
  • External PA socket: Yes
  • S-meter: Yes
  • RF gain: Yes
  • Dual watch: Yes
  • Din mount: Yes

Elektrische eigenschappen

  • Voltage: 13,8 Volt / 24 Volt /
  • Operating temperature: -10° to +55° C
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002%

Transmitter

  • Modulation AM: 90%
  • Modulation FM: 1.9 kHz
  • Spurious transmissions: inferior to 4 nW (- 54 dBm)
  • Emitted power in the adjacent channel: inferior a 20 μW

Receiver

  • Frequency response: 300 Hz - 3.0 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 3 Watt
  • Internal speaker: 8 Ohm

Fysieke eigenschappen

  • Length: 57 mm
  • Height: 77 mm
  • Width: 188 mm
  • Weight: 677 gram
  • Antenna connector: UHF (PL)
  • Mike connector: 6 pin connector

In de verpakking

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, German, Spanish, Italian, French, Polish, Romania

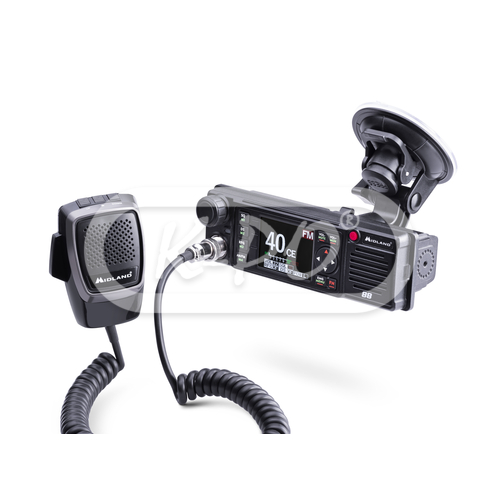

  • Suction cup for glass mounting: 1 pcs

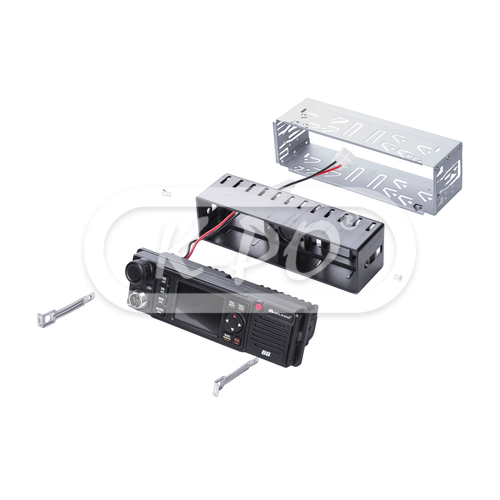

  • DIN-bracket with mounting/dismanting kit: 1 pcs
