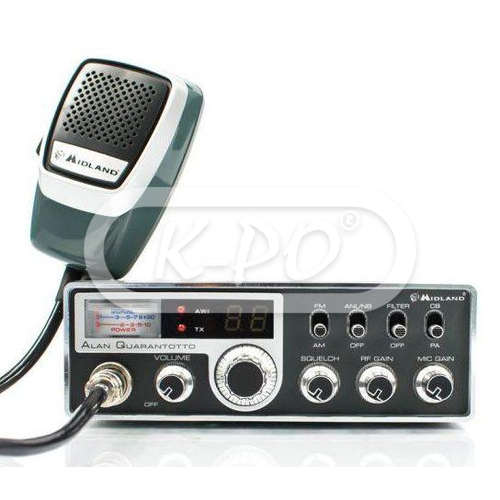

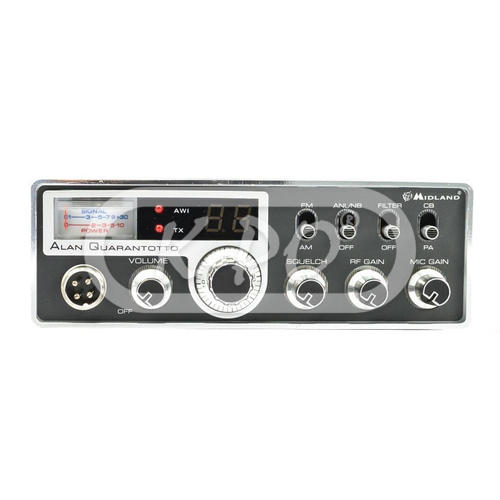

Midland - Alan Quarantotto

Artikelnummer: 21709

Fabrieksnummer: C217.09

Barcode: 8011869192425

The CB that made the communication history, returns completely renewed, but still faithful to the DNA of the historical product. Thanks to its fame, very easy use and its complete range of functions, it has been the Italian best-seller for over 30 years. A travelling companion and an irreplaceable work tool for those who are driving every day. Available for Dutch customers only

Frequentie bereik: 26.965 - 27.405 MHz

Vandaag verstuurd - Stock: 8

€ 279,95 (231.36 excl. 21% BTW)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 1 - 4 Watt / Duty cycle 10% @ 13.8V DC
• Channels: 40 AM / FM
• Display type: LED display
• Noise blanker: Yes
• External speaker socket: Yes
• External S-meter socket: Yes
• External PA socket: Yes
• S-meter: Yes
• MIC gain: Yes
• RF gain: Yes

Elektrische eigenschappen

• Voltage: 13,8 Volt
• Operating temperature: -10° to +55° C
• Operating mode: F3E (FM) / A3E (AM)
• Frequency control: PLL synthesizer
• Frequency tolerance: 0.002%

Transmitter

• Audio frequency response: 300 Hz - 3 kHz

Receiver

• AM sensitivity: 0.5 µV for 10 dB
• FM sensitivity: 0.5 µV for 10 dB
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Receiving system: Dual conversion superheterodyne
• IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz

Fysieke eigenschappen

• Length: 205 mm
• Height: 55 mm
• Width: 165 mm
• Weight: 1650 gram
• Antenna connector: UHF (PL)
• Mike connector: 4 pin connector

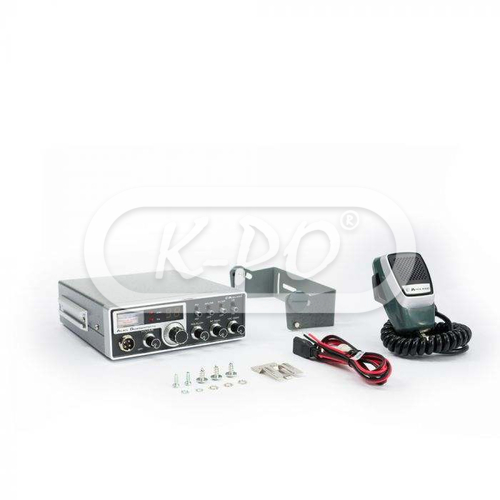

In de verpakking

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, Italian
• Microphone holder: 1 pcs

Downloads

• Informatieblad: Manual MIDLAND ALAN QUARANTOTTO SESSANTOTTO
