Midland - CB-GO USB

Artikelnummer: 126202

Fabrieksnummer: C1262.05

Barcode: 8011869203510

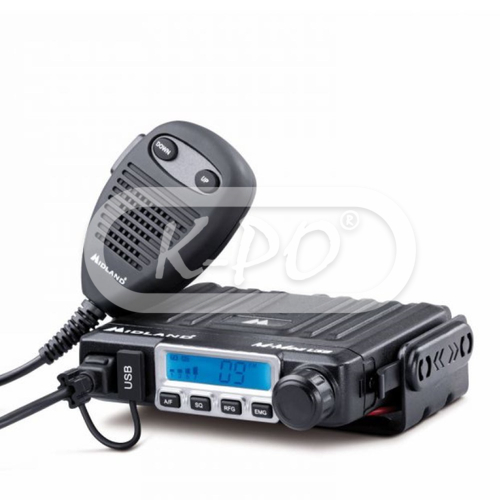

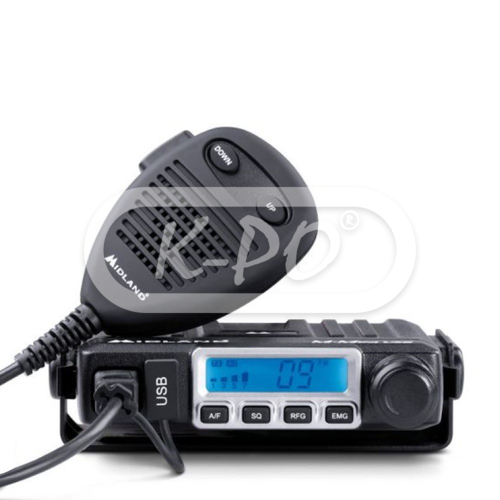

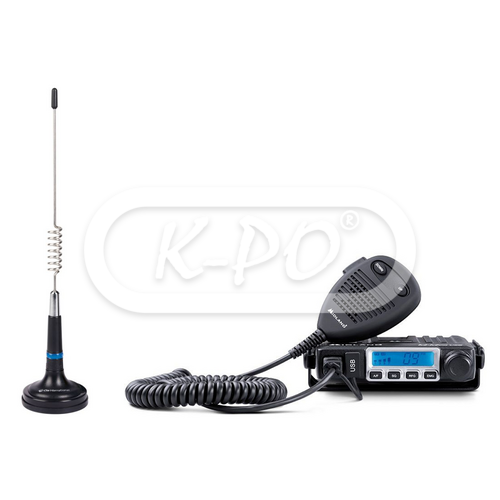

The Midland CB-GO USB is one of the most populair CB starter and holiday packs. A complete pack with the very compact sized M-Mini USB CB radio with cigarette lighter plug and the Midland LC29 magnetic antenna. Comes in a luxury 'truck' shaped blister packaging.

Frequentie bereik: 26.965 - 27.405 MHz

Vandaag verstuurd

€ 119,95 (99.13 excl. 21% BTW)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 1 - 4 Watt
• Channels: 40 AM / FM
• Display type: LCD display
• Display colors: Blue
• USB: Yes
• Squelch: Digital squelch
• Emergency channel: Yes
• Keypad lock: Yes
• Quick channel selection: Yes
• External speaker socket: Yes
• S-meter: Yes
• RF gain: Yes
• Car socket connector: Yes

Elektrische eigenschappen

• Voltage: 13,8 Volt
• Operating temperature: -20° to +55° C
• Frequency tolerance: 0.002%

Transmitter

• Modulation AM: from 85% to 90%
• Modulation FM: 1.9 kHz
• Frequency allowance: ± 300 Hz
• Spurious transmissions: inferior to 4 nW (- 54 dBm)
• Emitted power in the adjacent channel: inferior a 20 μW

Receiver

• Adjacent channel selectivity: 60 dB
• Maximum audio power: 1 Watt
• Internal speaker: 8 Ohm
• Image rejection: 70 dB

Fysieke eigenschappen

• Length: 120 mm
• Height: 25 mm
• Width: 110 mm
• Weight: 450 gram
• Antenna connector: UHF (PL)
• Mike connector: RJ45 connector

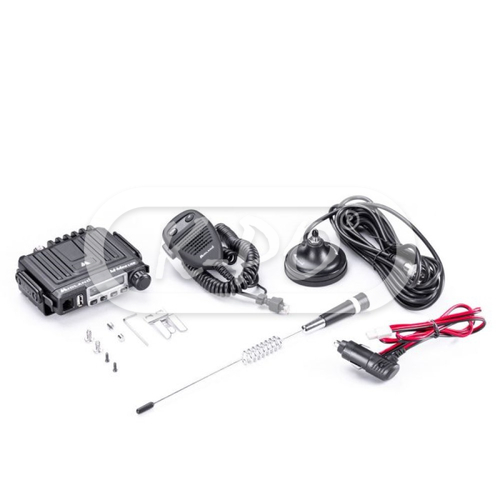

In de verpakking

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 12 Volt cigarette lighter plug
• User Manual: English, German, Spanish, Italian, French, Polish, Romania
• LC29 antenna: 1 pcs
• Magnetic base: 1 pcs

Downloads

• Informatieblad: MANUAL M MINI USB
