Midland - M-Zero Plus starter pack

Artikelnummer: 7100025

Fabrieksnummer: 7100025

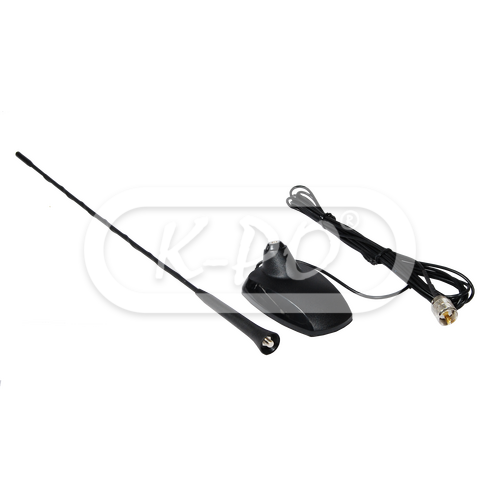

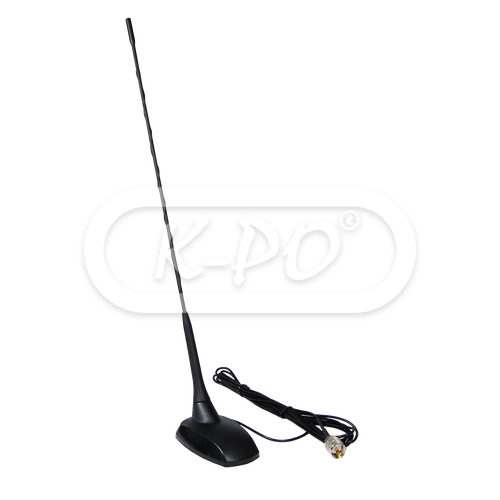

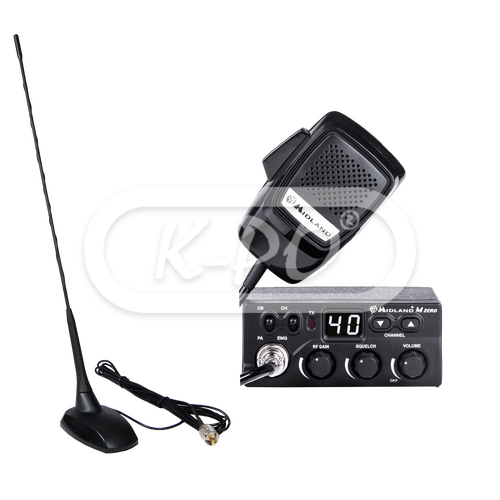

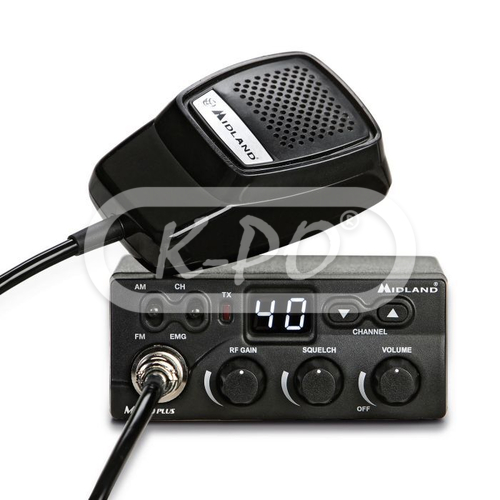

The Midland M-Zero Plus starter pack is a plug and play CB set and very easy to use. The package contains the Midland M-Zero Plus radio with cigarette lighter plug and the Albrecht CBM-516 streamlined magnet antenna.

Frequentie bereik: 26.965 - 27.405 MHz

Niet op voorraad - Levertijd in overleg

€ 89,95 (74.34 excl. 21% BTW)

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt / Duty cycle 10% @ 12.6V
Channels: 40 AM / FM
Display type: LED display
Display colors: Green
Squelch: Digital squelch
External speaker socket: Yes
RF gain: Yes
Car socket connector: Yes

Electrical data (radio)

Voltage: 13,8 Volt
Frequency tolerance: 0.002 %

Transmitter

Modulation AM: 90%
Modulation FM: 1.9 kHz
Drain: 13.8 Volt: 2 A
Spurious radiation: 62 dB

Receiver

AM sensitivity: 1.0 μV for 20 dB SINAD
FM sensitivity: 1.0 μV for 20 dB SINAD
Frequency response: 450 Hz - 2.5 kHz
Adjacent channel selectivity: 60 dB at 10 kHz / 70 dB at 20 kHz
Maximum audio power: 2 Watt
Squelch sensitivity: Adjustable from 1.2 μV to 1mV
IF frequencies: Double conversion 1st 10.7 MHz / 2nd 455 kHz
Cross modulation: 45 dB

Mechanical data (radio)

Length: 140 mm
Height: 54 mm
Width: 110 mm
Weight: 665 gram
Antenna connector: UHF (PL)
Mike connector: 4 pin connector

Electrical data (antenna)

Electrical type: Base loaded
VSWR: ≤ 1.2:1
Power peak: 150 Watts (CW) short time
Impedance: 50 Ohm
Polarization: Linear vertical
Cable: Yes
Cable length: 4 meter / RG 58

Mechanical data (antenna)

Height: 440 mm
Weight: 205 gram
Mounting type: Magnet

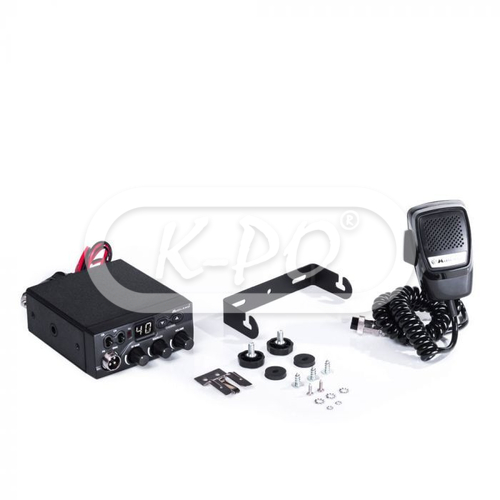

In de verpakking

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 12 Volt cigarette lighter plug
User Manual: English, German, Spanish, Italian, French, Polish, Romania
Antenna: 1 pcs
