Midland - M10

Artikelnummer: 1185

Fabrieksnummer: C1185

Barcode: 8011869197482

The first multimedia CB launched on the market in 2016, allows hands-free Bluetooth communication (with optional adapter). Full compatibility with traditional Midland accessories and a USB socket to charge any device. Find below the features of the Midland M-10, the first multimedia CB produced by the people who have made CB history, Midland.

Frequentie bereik: 26.965 - 27.405 MHz

Niet op voorraad - Levertijd in overleg

€ 119,95 (99.13 excl. 21% BTW)

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
Channels: 40 AM / FM
Display type: LCD display
Display colors: White
USB: Yes
Noise blanker: Yes
Squelch: DSS (Dynamic Squelch System)
Emergency channel: Yes
Memory channels: Yes
External speaker socket: Yes

Elektrische eigenschappen

Voltage: 13,8 Volt
Operating temperature: -10° to +55° C
Frequency control: PLL synthesizer
Frequency tolerance: 0.002%

Transmitter

Audio frequency response: 300 Hz - 3 kHz
Modulation AM: >90%
Modulation FM: 1.8 kHz to ± 0.2 kHz
Drain: 13.2 Volt: 1100 mA

Receiver

AM sensitivity: 1.0 µV for 20 dB SINAD
FM sensitivity: 1.0 µV for 20 dB SINAD
Adjacent channel selectivity: 65 dB
Signal to noise ratio: 45 dB
Maximum audio power: 4 Watt
Internal speaker: 8 Ohm
Receiving system: Dual conversion superheterodyne
IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
Audio distortion: 1.0 µV for 20 dB SINAD
Image rejection: 65 dB
Drain: 13.2 Volt: <250 mA

Fysieke eigenschappen

Length: 195 mm
Height: 35 mm
Width: 122 mm
Weight: 820 gram
Antenna connector: UHF (PL)
Mike connector: 4 pin connector

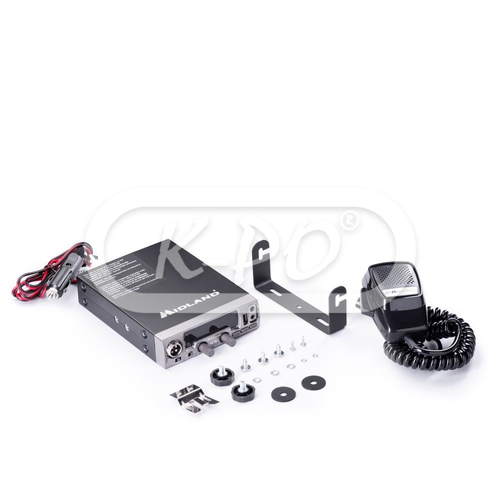

In de verpakking

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 12 Volt cigarette lighter plug
User Manual: English, German, Spanish, Italian, French, Polish, Romania

Downloads

Informatieblad: User manual m10 UK SP ITA RO FR DE PL
