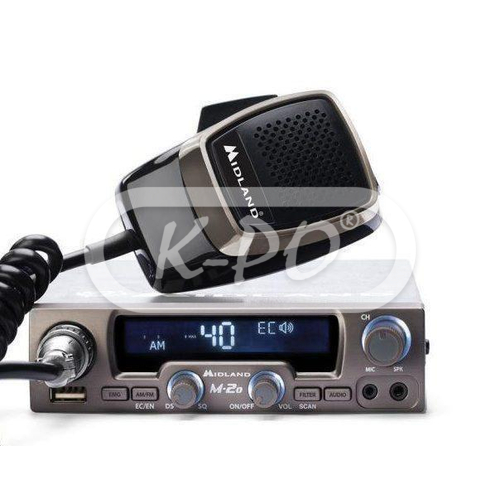

Midland - M20 Midland - M20 Midland - M20 Midland - M20

Midland - M20

Artikelnummer: 1186
Fabrieksnummer: C1186
Barcode: 8011869197499

Even more functions than its predecessor M10. Large LCD screen, knob to change channel (also on the mike), display indicator of the operating band are the three features that make the M-20 model a really efficient multimedia CB. Like all Midland multimedia CBs, with this product communication is possible in wireless mode, thanks to the Bluetooth WA accessories, connected to the 2-pin socket.

Frequentie bereik: 26.965 - 27.405 MHz
Vandaag verstuurd - Stock: 5
€ 139,95 (115.66 excl. 21% BTW)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Display colors: White
  • USB: Yes
  • Noise blanker: Yes
  • Squelch: DSS (Dynamic Squelch System)
  • Emergency channel: Yes
  • Scan function: Yes
  • External speaker socket: Yes
  • External S-meter socket: Yes
  • S-meter: Yes

Elektrische eigenschappen

  • Voltage: 13,8 Volt
  • Operating temperature: -10° to +55° C
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002%

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: >90%
  • Modulation FM: 1.8 kHz to ± 0.2 kHz
  • Drain: 13.2 Volt: 1100 mA

Receiver

  • AM sensitivity: 1.0 µV for 20 dB SINAD
  • FM sensitivity: 1.0 µV for 20 dB SINAD
  • Adjacent channel selectivity: 65 dB
  • Signal to noise ratio: 45 dB
  • Maximum audio power: 4 Watt
  • Internal speaker: 8 Ohm
  • Receiving system: Dual conversion superheterodyne
  • IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Audio distortion: 1.0 µV for 20 dB SINAD
  • Image rejection: 65 dB
  • Drain: 13.2 Volt: <250 mA

Fysieke eigenschappen

  • Length: 195 mm
  • Height: 35 mm
  • Width: 140 mm
  • Weight: 903 gram
  • Antenna connector: UHF (PL)
  • Mike connector: 6 pin connector

In de verpakking

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, Italiano, Deutsch, Espanol, Francais, Poslki, Romana
