Midland - M5 Midland - M5 Midland - M5 Midland - M5 Midland - M5

Midland - M5

Artikelnummer: 1277
Fabrieksnummer: C1277
Barcode: 8011869200328

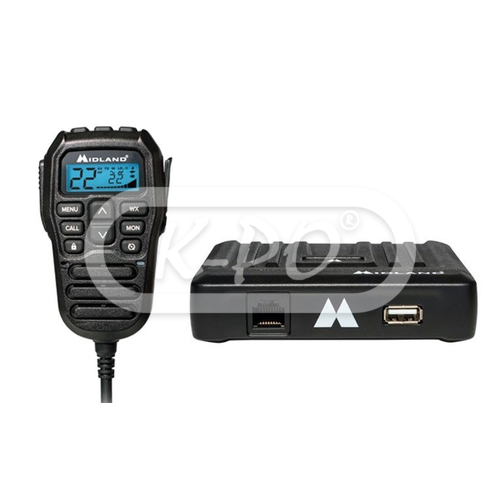

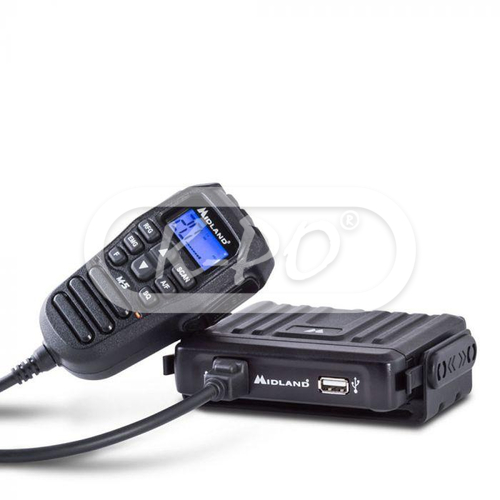

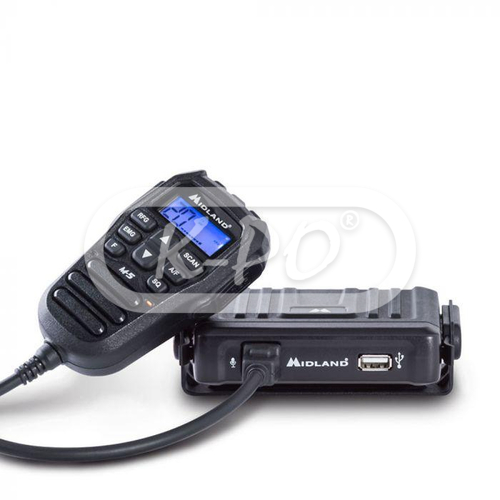

The CB world finds a new style with the Midland M-5, the "CB in the mike" to have everything on hand all the time, thanks to the buttons placed directly on the microphone with an LCD display to see channels, bands and settings. The compact size and its particular configuration allow the radio to be placed in the storage compartment or even in the boot (with accessory cable extension). A new way to enjoy the CB that allows you to drive with a minimal cabin

Frequentie bereik: 26.965 - 27.405 MHz
Vandaag verstuurd - Stock: 1
€ 139,95 (115.66 excl. 21% BTW)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
  • Channels: 40 AM / FM
  • Display type: Multi-color backlight
  • Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
  • USB: Yes
  • Noise blanker: Yes
  • Squelch: Digital squelch
  • Emergency channel: Yes
  • Scan function: Yes
  • Memory channels: Yes
  • External speaker socket: Yes
  • External PA socket: Yes
  • S-meter: Yes
  • RF gain: Yes
  • Car socket connector: Yes
  • Accessory connector: 2 pin Kenwood

Elektrische eigenschappen

  • Voltage: 13,8 Volt
  • Operating temperature: -10° to +55° C

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: from 85% to 90%
  • Modulation FM: 1.9 kHz
  • Frequency allowance: ± 300 Hz
  • Spurious transmissions: inferior to 4 nW (- 54 dBm)
  • Emitted power in the adjacent channel: inferior a 20 μW
  • Drain: 13.2 Volt: 2 A

Receiver

  • Frequency response: 300 Hz - 3 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: Radio: 3 Watt / Microphone: 2 Watt
  • Internal speaker: Radio: 8 Ohm / Microphone: 16 Ohm
  • Image rejection: 70 dB

Fysieke eigenschappen

  • Length: 110 mm
  • Height: 25 mm
  • Width: 120 mm
  • Weight: 380 gram
  • Antenna connector: UHF (PL)
  • Mike connector: RJ45 connector

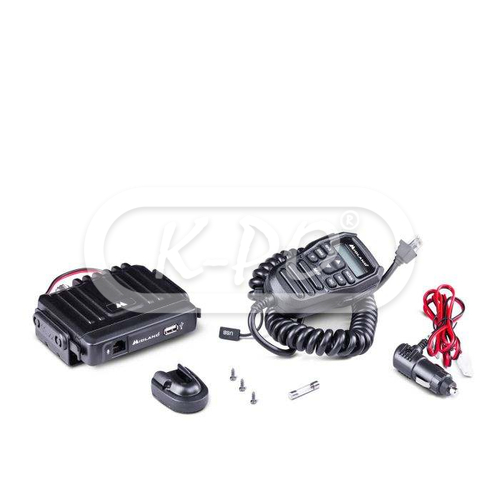

In de verpakking

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 12 Volt cigarette lighter plug
  • User Manual: English, German, Spanish, Italian, French, Polish, Romania
