Nissei - RS-101

Artikelnummer: 600101

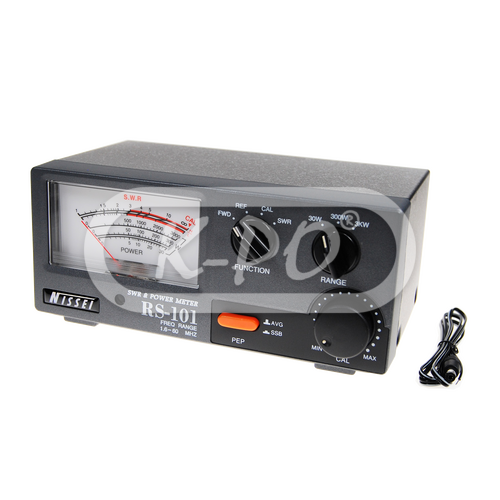

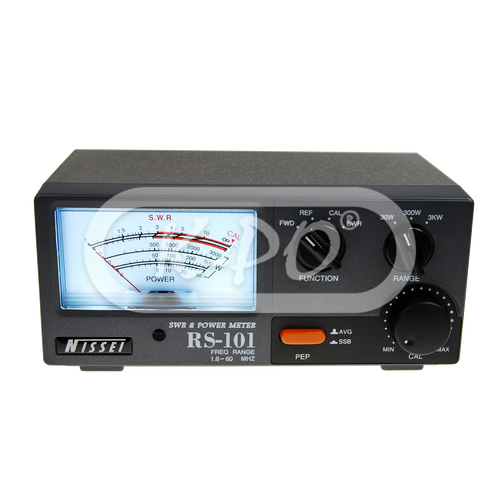

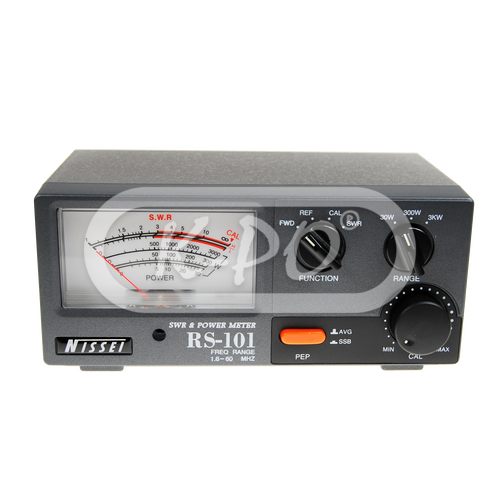

The Nissei RS-101 is a highlly accurate SWR and Power meter for 1.6 - 60 MHz. For measuring Forward Power, Reflected Power and SWR. AVG / PEP switch to select average power or SSB / PEP. Maximum power handling of 3 kW, short time.

Frequentie bereik: 1.6 - 60 MHz

Vandaag verstuurd - Stock: 1

€ 89,95 (74.34 excl. 21% BTW)

Elektrische eigenschappen

• Backlight display / meter: Yes
• Impedance: 50 Ohm
• Power range: 30 / 300 / 3000 Watts
• Accuracy: 30 Watts: (AVG) ± 10%, (PEP) ± 15% / 300 - 3000 Watts: (AVG) ± 5%, (PEP) ± 10%
• Minimum Power for SWR: 1 Watt
• Insertion loss: less than 0.1dB
• Testing function: SWR and Power (FWD and REF / AVG and PEP)
• Voltage: 13.8 Volt, for display lightning only

Fysieke eigenschappen

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 135 mm
• Height: 85 mm
• Width: 90 mm
• Weight: 780 gram

In de verpakking

• Meter: Yes
• DC power cable: Yes
• Installation manual: Englsih

Downloads

• Informatieblad: RS series
