President - Barry II ASC President - Barry II ASC President - Barry II ASC President - Barry II ASC President - Barry II ASC President - Barry II ASC President - Barry II ASC

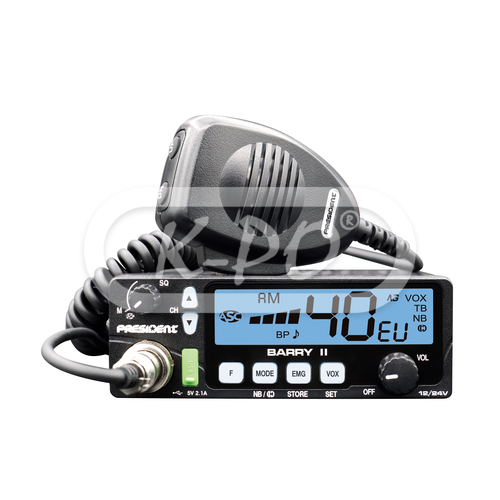

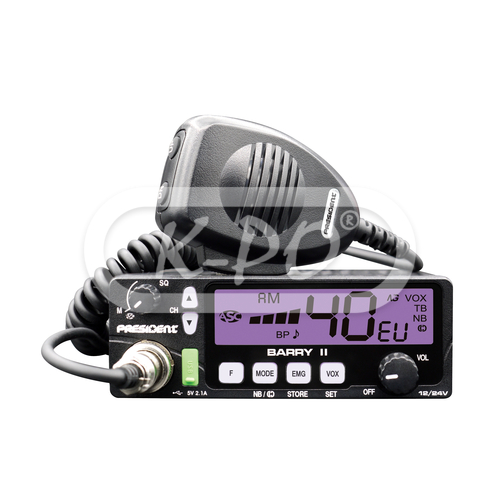

President - Barry II ASC

Artikelnummer: 80083
Fabrieksnummer: TXPR022
Barcode: 3435991130028

The Barry II AM/FM is the successor of the Barry and has now USB input and a VOX function. This dual voltage (12/24V) CB is Presidents basic model radio with a large clear display and operates on all European bands.

Frequentie bereik: 26.965 - 27.405 MHz
Vandaag verstuurd
€ 119,95 (99.13 excl. 21% BTW)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
  • VOX Function: Yes
  • USB: Yes
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
  • Emergency channel: Yes
  • External speaker socket: Yes
  • External PA socket: Yes
  • S-meter: Yes
  • TOT (time out timer): Yes
  • External VOX socket: Yes
  • Roger Beep: Yes

Elektrische eigenschappen

  • Voltage: 13,8 Volt / 24 Volt /

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Microphone sensitivity: 7 mV
  • Frequency allowance: ± 200 Hz
  • Transmission interference: inferior to 4 nW (- 54 dBm)
  • Emitted power in the adjacent channel: inferior a 20 μW
  • Modulated signal distortion: 2 %
  • Drain: 13.2 Volt: 1.7 A / 26.4 Volt: 0.85 A

Receiver

  • AM sensitivity: 0,5 µV - 113 dBm
  • FM sensitivity: 0,35 µV - 116 dBm
  • Frequency response: 300 Hz - 3 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 2.5 Watt
  • Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
  • Frequency image rejection rate: 60 dB
  • Intermediate image rejection rate: 70 dB
  • Drain: 13.2 Volt: 160 - 420 mA / 26.4 Volt: 100 - 250 mA

Fysieke eigenschappen

  • Length: 180 mm
  • Height: 45 mm
  • Width: 125 mm
  • Weight: 900 gram
  • Antenna connector: UHF (PL)
  • Mike connector: 6 pin connector

In de verpakking

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, Spanish, French, Polish

Downloads
