President - Richard

Artikelnummer: 80095

Fabrieksnummer: TXPR034

Barcode: 3435991328067

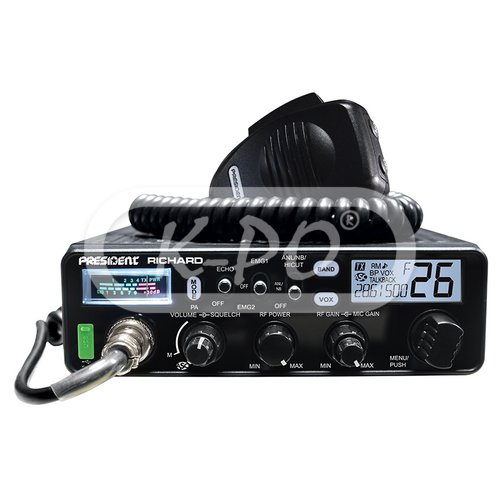

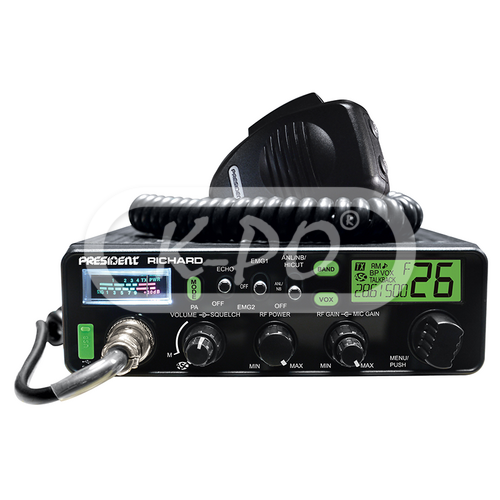

The President Richard is a amateur radio HF mobile transceiver. The Radio is suitable for the 10M amateur band frequency from 28.000 to 29.700 MHz.

Frequentie bereik: 28.000 - 29.700 MHz

Volgende werkdag verstuurd

€ 189,91 (156.95 excl. 21% BTW)

Features

• Modulation: AM / FM
• Output power: AM: 13 Watt / FM: 40 Watt
• Channels: 40 AM / FM
• Display type: LCD display
• Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
• Export version: 26.965 - 30.105 MHz
• VOX Function: Yes
• USB: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Emergency channel: Yes
• Scan function: Yes
• Memory channels: Yes
• External speaker socket: Yes
• External PA socket: Yes
• S-meter: Yes
• MIC gain: Yes
• RF gain: Yes
• TOT (time out timer): Yes
• External VOX socket: Yes
• Roger Beep: Yes

Elektrische eigenschappen

• Voltage: 13,8 Volt

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: 3.0 mV
• Frequency allowance: ± 300 Hz
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Emitted power in the adjacent channel: inferior a 20 μW
• Modulated signal distortion: 1.8 %
• Drain: 13.2 Volt: <7.0 A

Receiver

• AM sensitivity: 0,5 µV - 113 dBm
• FM sensitivity: 0,35 µV - 116 dBm
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 3 Watt
• Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate image rejection rate: 70 dB
• Drain: max. 500 mA

Fysieke eigenschappen

• Length: 160 mm
• Height: 52 mm
• Width: 170 mm
• Weight: 1100 gram
• Antenna connector: UHF (PL)
• Mike connector: 6 pin connector

In de verpakking

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, Spanish, French, Polish
