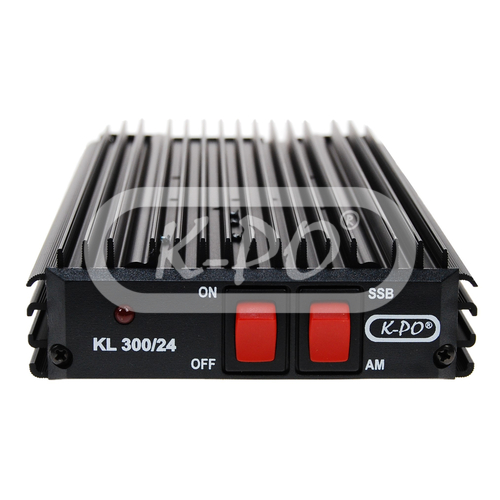

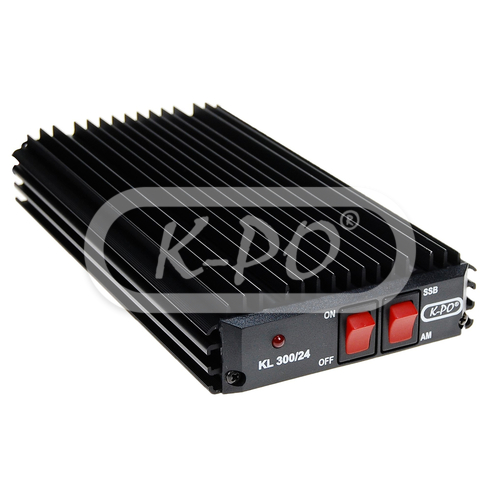

RM - KL 300 24V

Artikelnummer: 1749

The RM KL 300/24 is an linear amplifier with inversion polarity protection is suitable for 24 Volt. The max. output power off the amplifier is 150 Watts AM-FM and 300 Watts SSB (PEP).

Frequentie bereik: 25-30 MHz

Vandaag verstuurd

€ 149,96 (123.93 excl. 21% BTW)

Elektrische eigenschappen

• Input power (Watts): 1-8 / 2-16 SSB-CW
• Max output power (Watts): 150 AM-FM
• Max output power SSB (Watts): 300 (PEP)
• Impedance: 50 Ohm
• Max input SWR: 1.1 - 1.5
• Fuse: 8 A
• Inversion polarity protection: Yes
• Electronic switch: Yes
• Cooling fans: 2
• Output power level: 2
• Input energy/power: 14-20 A

Fysieke eigenschappen

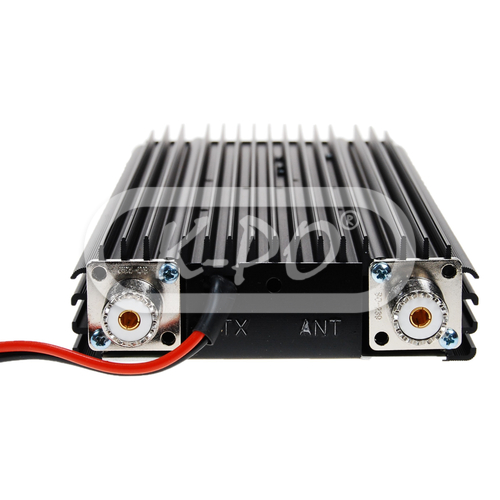

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 109 mm
• Height: 35 mm
• Width: 225 mm
• Weight: 605 gram
• Color: Red or Blue
