RM - KL 405

Artikelnummer: 1765
Barcode: 000000001120

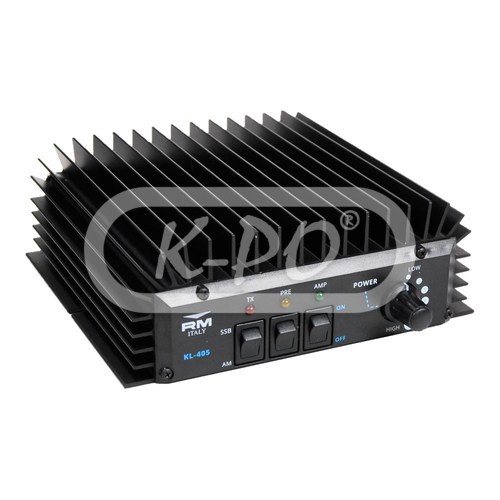

The RM KL 405 is an linear amplifier with inversion polarity protection. The max. output power off the amplifier is 200 Watts AM-FM and 400 Watts SSB (PEP).

*Protection circuits are not 100% guaranteed. To prevent damage to your amplifier always check your VSWR after changing bands, no hot switching, no excessive input power etc.

Frequentie bereik: 3-30 MHz
Volgende werkdag verstuurd - Stock: 5
€ 284,94 (235.49 excl. 21% BTW)

Elektrische eigenschappen

  • Input power (Watts): 1-10 AM-FM / 2-20 SSB-CW
  • Max output power (Watts): 200 AM-FM
  • Max output power SSB (Watts): 400 (PEP)
  • Impedance: 50 Ohm
  • Max input SWR: 1.1 - 1.5
  • Fuse: 2x 12 A
  • Inversion polarity protection: Yes
  • Electronic switch: Yes
  • Pre-amplifier: Yes
  • Cooling fans: No
  • Output power level: 6
  • Input energy/power: 14-20 A
  • Antenna pre-amplifier: 26 dB

Fysieke eigenschappen

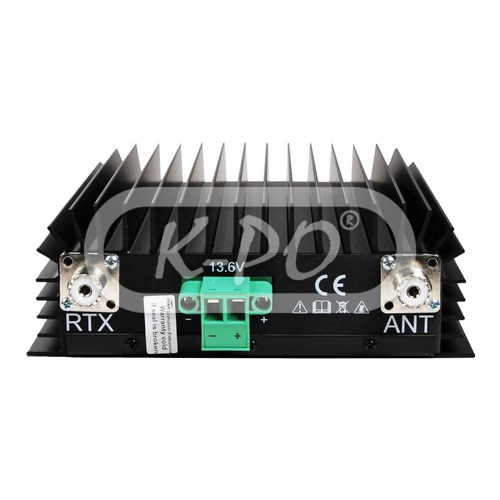

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 170 mm
  • Height: 62 mm
  • Width: 210 mm
  • Weight: 980 mm
  • Color: Silver

In de verpakking

  • Amplifier: Yes
  • Installation manual: English
