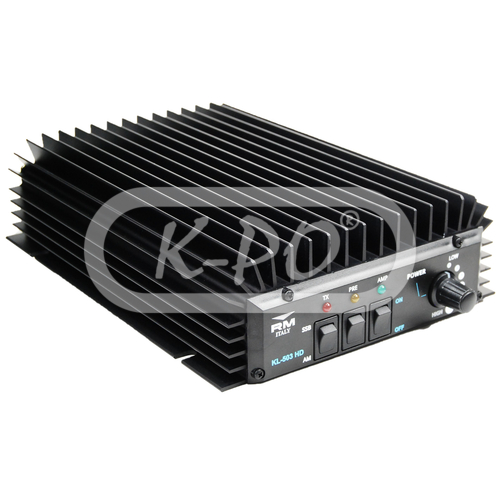

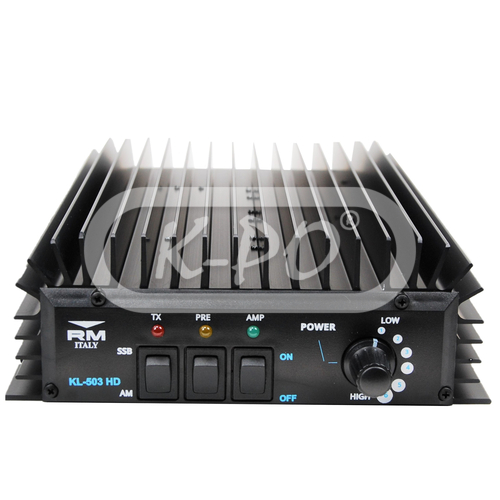

RM - KL 503 HD

Artikelnummer: 1791

Barcode: 000000001779

The RM KL 503 HD is an linear amplifier with inversion polarity protection. The max. output power off the amplifier is 250 Watts AM-FM and 300 Watts SSB (PEP).

*Protection circuits are not 100% guaranteed. To prevent damage to your amplifier always check your VSWR after changing bands, no hot switching, no excessive input power etc.

Frequentie bereik: 25-30 MHz

Volgende werkdag verstuurd - Stock: 8

€ 324,95 (268.55 excl. 21% BTW)

Elektrische eigenschappen

• Input power (Watts): 1-35 AM-FM-SSB-CW
• Max output power (Watts): 250 Watts AM/FM
• Max output power SSB (Watts): 300 Watts (PEP)
• Impedance: 50 Ohm
• Max input SWR: 1.1 - 1.5
• Fuse: 3x 10A (5x20 mm fast)
• Inversion polarity protection: Yes
• Electronic switch: Yes
• Pre-amplifier: Yes
• Cooling fans: No
• Output power level: 6
• Input energy/power: 30A
• Transistor: 8x RM 3 Mosfet + 1x RM 4 Mosfet Driver

Fysieke eigenschappen

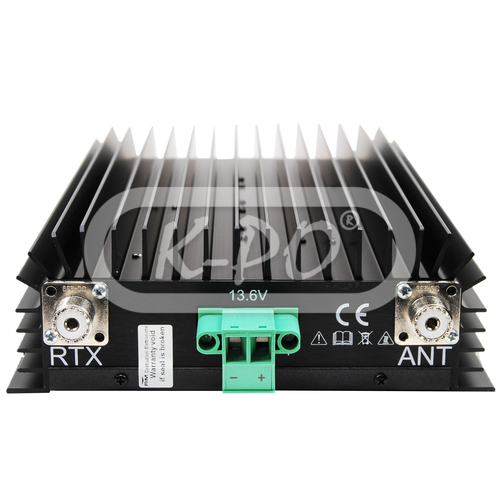

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 170 mm
• Height: 62 mm
• Width: 295 mm
• Weight: 1500 gram
• Color: Black

In de verpakking

• Amplifier: Yes
• Installation manual: English
