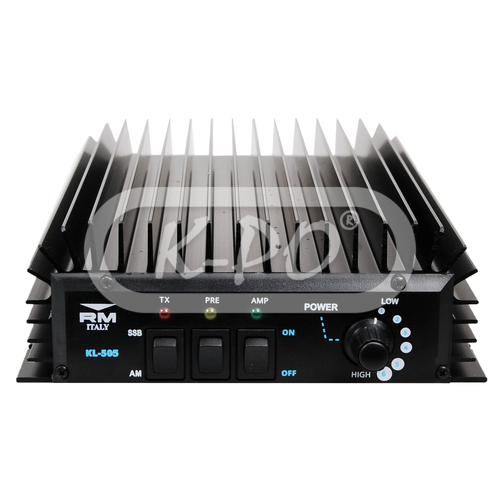

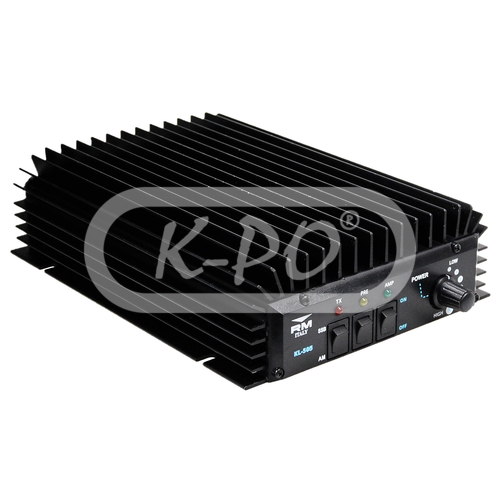

RM - KL 505

Artikelnummer: 1748

Barcode: 000000001137

The RM KL 505 is an linear amplifier with inversion polarity protection. The max. output power off the amplifier is 230 Watts AM-FM-SSB (max).

*Protection circuits are not 100% guaranteed. To prevent damage to your amplifier always check your VSWR after changing bands, no hot switching, no excessive input power etc.

Frequentie bereik: 3-30 MHz

Volgende werkdag verstuurd - Stock: 2

€ 431,95 (356.98 excl. 21% BTW)

Elektrische eigenschappen

• Input power (Watts): 10 AM-FM-SSB-CW
• Max output power (Watts): 230 AM-FM
• Max output power SSB (Watts): 230 (PEP)
• Impedance: 50 Ohm
• Max input SWR: 1.1 - 1.5:1
• Fuse: 3x 12 A
• Inversion polarity protection: Yes
• Electronic switch: Yes
• Pre-amplifier: Yes
• Cooling fans: No
• Output power level: 6
• Input energy/power: 35 A
• Antenna pre-amplifier: 26 dB
• Transistors: 4x RM SD-1446

Fysieke eigenschappen

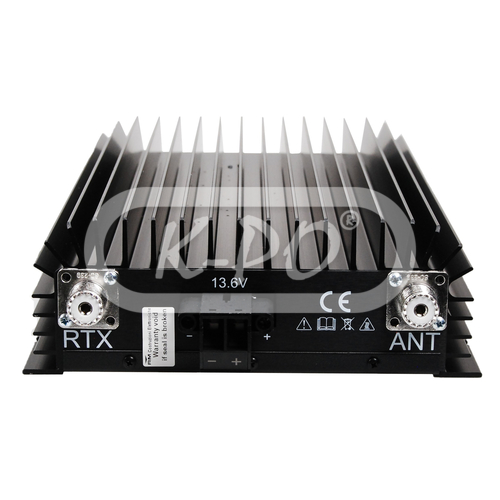

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 190 mm
• Height: 67 mm
• Width: 260 mm
• Weight: 2000 gram
• Color: Black

In de verpakking

• Amplifier: Yes
• Installation manual: English

Downloads

• Informatieblad: KL505 User Manual English watermarked
