Sirio - AS 100 MAG

Artikelnummer: 220900561

Fabrieksnummer: 2209005.61

Barcode: 8056182114495

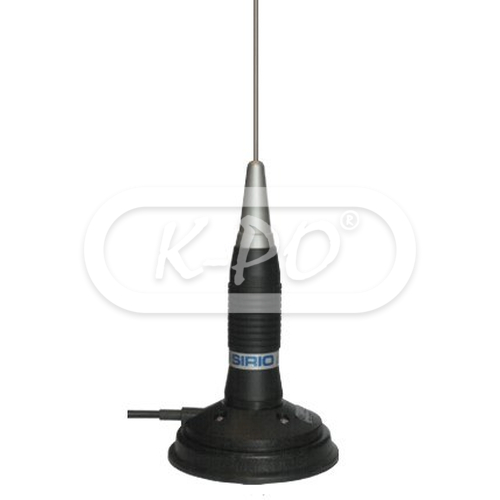

The AS 100 MAG antenna is a mobile antenna with PM 100 magnet. The antenna is supplied with magnetic mount and 3.6 meter cable for a temporary installation or for use with holiday kits.

Frequentie bereik: 27 - 28.5 MHz

Niet op voorraad - Levertijd in overleg

€ 45,94 (37.97 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 580 kHz (55 channels) ≤ 2.0
• Power continues: 100 Watts (CW)
• Power peak: 300 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 3.6 m / RG 58

Fysieke eigenschappen

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 1020 mm
• Weight: 240 gram
• Mounting type: 92 mm magnet

In de verpakking

• Antenna: Yes
• Radio connector: UHF (PL) male
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Informatieblad: Id 008 05 06 2014 as series
