Sirio - AS 100 N

Artikelnummer: 220900523

Fabrieksnummer: 2209005.23

Barcode: 8056182114488

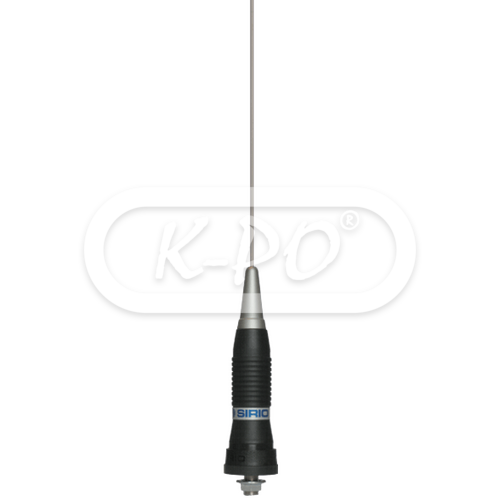

The AS 100 N antenna is a mobile antenna with N-PL mount and N cable.

Frequentie bereik: 27 - 28.5 MHz

Vandaag verstuurd

€ 31,94 (26.4 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 580 kHz (55 channels) ≤ 2.0
• Power continues: 100 Watts (CW)
• Power peak: 300 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Fysieke eigenschappen

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 1020 mm
• Weight: 180 gram
• Mounting type: Thru-hole

In de verpakking

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Informatieblad: Id 008 05 06 2014 as series
