Sirio - Gain Master 5/8

Artikelnummer: 211322000

Fabrieksnummer: 2113220.00

Barcode: 8056182110022

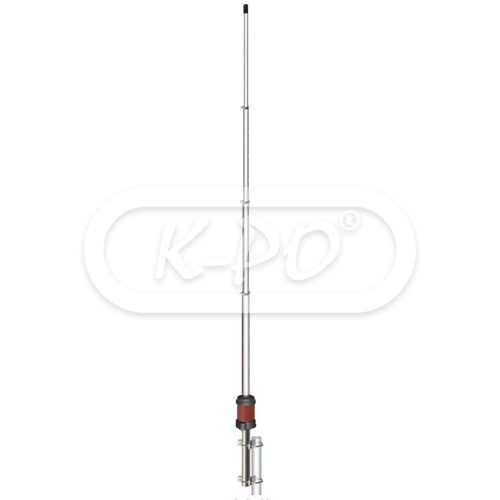

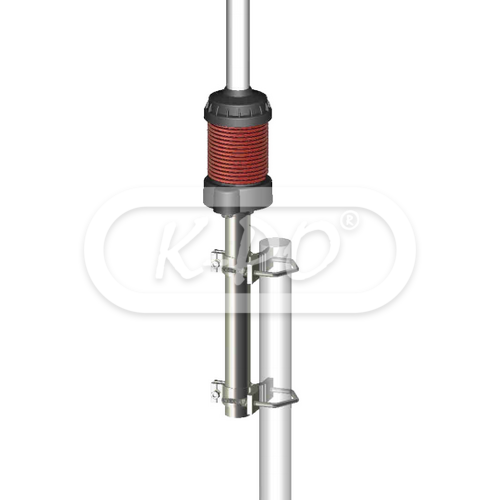

The Sirio Gain Master 5/8 is a 0.625 high tech fiberglass base station wide band antenna from 10 to 12 meter* band, completely designed by electromagnetic simulation to achieve the maximum gain and optimize the radiation pattern and bandwidth. Engineered with the most advanced available technologies it is completely manufactured in Italy with high quality materials. The new design of the radiant element (Patent Pending) works like a central feeded dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary. The coaxial coil at the bottom works like RF-choke for the optimum decoupling from mast and feeding line.

The Sirio Gain Master is the new reference standard in its class of antennas.

* 12 meter band covered with manual or automatic antenna tuner.

Frequentie bereik: 25.5 - 30.0 MHz (no tuning required)

Niet op voorraad - Levertijd in overleg

€ 189,95 (156.98 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 0.625 λ center feed
• Gain: 1 to 2 dB higher than conventional 5/8 λ
• VSWR: 25.5-30 MHz band ≤ 2.0 (no tuning required)
• Power continues: 500 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Anodized aluminium, copper, stainless steel, fiberglass, thermoplastic UV stabilized
• Mast Ø: 35 - 54 mm
• Max wind resistance: 160 km/h
• Height: 7360 mm (including bracket)
• Weight: 3000 gram
• Mounting type: On mast
• Antenna connector: UHF-female, PTFE insulator & gold plated central pin

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian
