Sirio - GP 108-136 LB-N

Artikelnummer: 210190100

Fabrieksnummer: 2101901.00/N

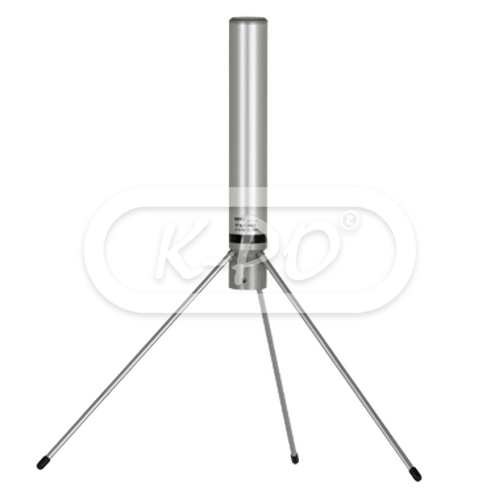

1/4 λ Ground Plane wide-band antenna, 108 - 136 MHz, for base station service. It is made of aluminium and hiqh quality materials to get the best efficiency and robustness. Its radial whip is earthed to be protected against the static discharges. GP 108-136 LB is developed for the aeronautic band service.

Frequentie bereik: TX: 118 - 136 MHz, RX: 108 - 136 MHz

Vandaag verstuurd - Stock: 4

€ 89,95 (74.34 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 1/4 λ folded ground plane
• Gain: 0 dBd, 2.15 dBi
• VSWR: See the user manual under product downloads
• Bandwidth: See the user manual under product downloads
• Power continues: 1000 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Anodized aluminium, stainless steel, nylon
• Mast Ø: 36 - 40 mm
• Max wind resistance: 160 km/h
• Height: 890 mm
• Weight: 1310 gram
• Mounting type: On mast
• Antenna connector: N-female

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 124 064
