Sirio - GP 3-E

Artikelnummer: 992030
Fabrieksnummer: 2101801.00

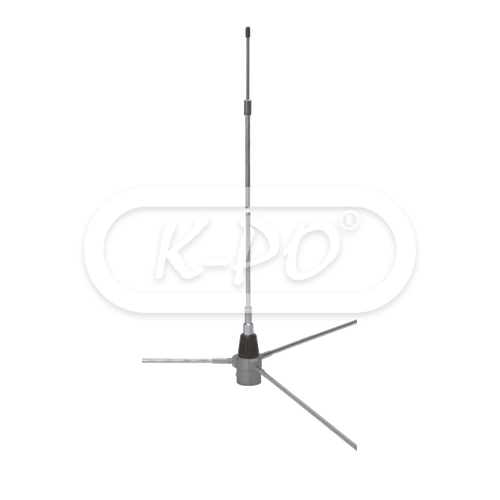

5/8 λ Ground Plane base station antenna for land and marine service. It works on the frequency range of 135-175 MHz by using the tuning diagram enclosed. The matching coil is DC feeded for a perfect protection from the static discharges. GP 3-E is made of non-corrosive aluminium and assembled on a very strong base of die-cast metal to get the maximum robustness and the best performance. Tuning is easy by following the attached directions.

Frequentie bereik: 135 - 175 MHz tunable
Volgende werkdag verstuurd - Stock: 9
€ 45,96 (37.98 excl. 21% BTW)

Elektrische eigenschappen

  • Electrical type: 5/8 λ ground plane
  • Gain: 1.5 dBd, 3.65 dBi
  • VSWR: ≤ 1.2
  • Bandwidth: 6.7 MHz ≤ 2.0
  • Power continues: 200 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Fysieke eigenschappen

  • Materials: Aluminium, nylon
  • Mast Ø: 25 - 30 mm
  • Max wind resistance: 150 km/h
  • Height: 1480 mm
  • Weight: 570 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female

In de verpakking

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
