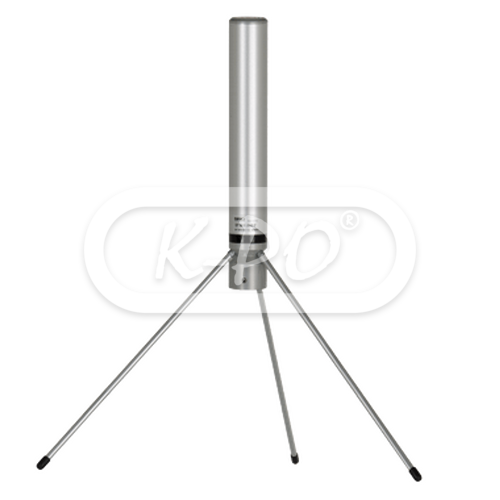

Sirio - GP 76-88 LB-U

Artikelnummer: 210570100

Fabrieksnummer: 2105701.00

1/4 λ Ground Plane wide-band antenna, 76 - 88 MHz, for base station service. No tuning required. It is made of aluminium and high quality materials to get the best efficiency and robustness. Its radial whip is earthed to be protected against the static discharges.

Frequentie bereik: 76 - 88 MHz

Vandaag verstuurd - Stock: 1

€ 99,95 (82.6 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 1/4 λ folded ground plane
• Gain: 0 dBd, 2.15 dBi
• VSWR: ≤ 1.2
• Bandwidth: 14 MHz ≤ 2.0
• Power continues: 1000 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Feed system: Direct DC-ground

Fysieke eigenschappen

• Materials: Anodized aluminium, stainless steel, nylon
• Mast Ø: 36 - 40 mm
• Max wind resistance: 160 km/h
• Height: 1400 mm
• Weight: 1710 gram
• Mounting type: On mast
• Antenna connector: UHF-female

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 134 21 01 2003
