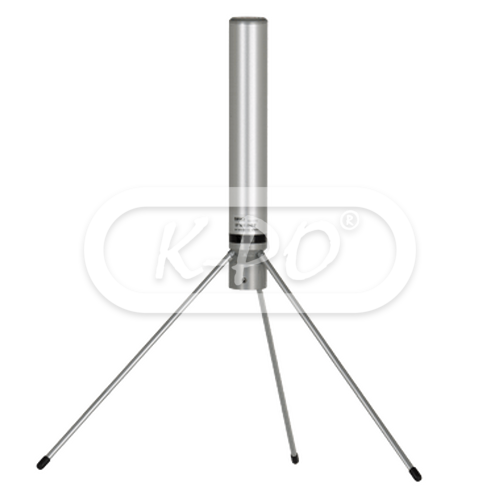

Sirio - GP 87-108 LB-U

Artikelnummer: 2105801

Fabrieksnummer: 2105801.00

1/4 λ Ground Plane wide-band antenna, 87 - 108 MHz, for base station service. It is made of aluminium and hiqh quality materials to get the best efficiency and robustness. Its radial whip is earthed to be protected against the static discharges. GP 87-108 LB is developed for FM radio, 3 meter band.

Frequentie bereik: 87 - 108 MHz

Volgende werkdag verstuurd

€ 89,95 (74.34 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 1/4 λ folded ground plane
• Gain: 0 dBd, 2.15 dBi
• VSWR: See the user manual under product downloads
• Bandwidth: See the user manual under product downloads
• Power continues: 1000 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Anodized aluminium, stainless steel, nylon
• Mast Ø: 36 - 40 mm
• Max wind resistance: 160 km/h
• Height: 1190 mm
• Weight: 1500 gram
• Mounting type: On mast
• Antenna connector: UHF-female

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 124 064
