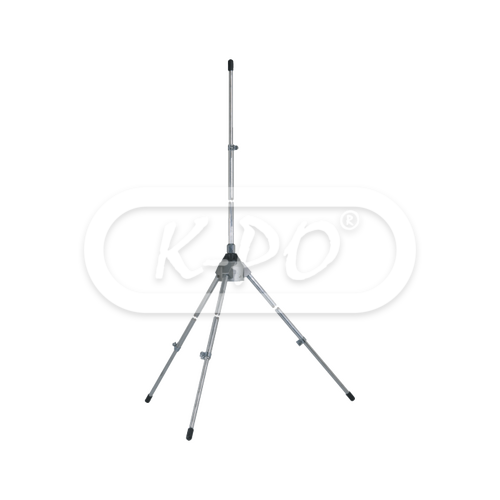

Sirio - GPA 135 - 175

Artikelnummer: 203003

Fabrieksnummer: 2101601.00

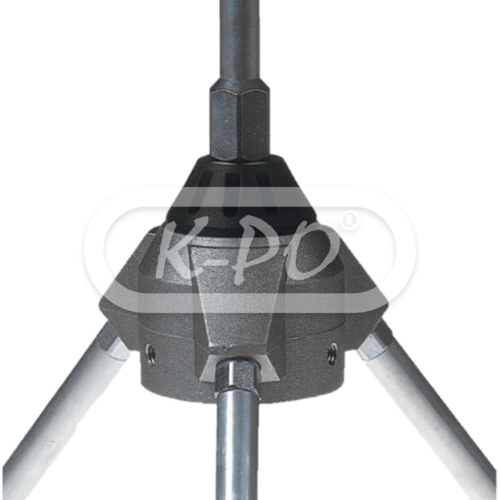

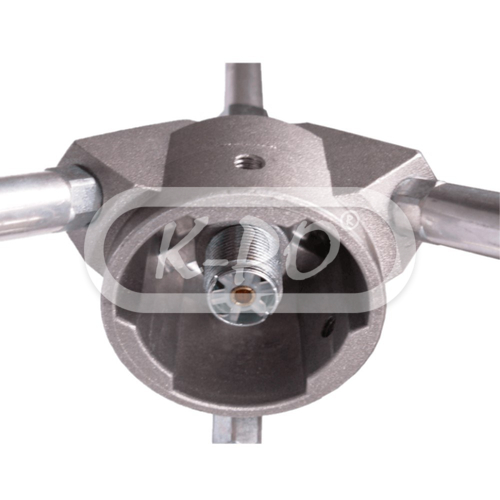

1/4 λ Ground Plane antenna for base station service working on 135-175 MHz by means of the tuning diagram enclosed. It is entirely made of non-corrosive aluminium and assembled on a strong die-cast base which allows an easy and safe installation assuring very good performances.

Frequentie bereik: 135 - 175 MHz tunable

Niet op voorraad - Levertijd in overleg

€ 35,95 (29.71 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 1/4 λ ground plane
• Gain: 0 dBd, 2.15 dBi
• VSWR: ≤ 1.2
• Bandwidth: 13 MHz ≤ 2.0
• Power peak: 300 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Aluminium, chromed brass, zamak
• Mast Ø: 35 - 40 mm
• Max wind resistance: 180 km/h
• Height: 960 mm
• Weight: 520 gram
• Mounting type: On mast
• Antenna connector: UHF-female
• Radial length: 520 mm

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Informatieblad: Id gpa series
