Sirio - GPE 5/8 Static

Artikelnummer: 210030100

Fabrieksnummer: 2100301.00

Barcode: 8056182110305

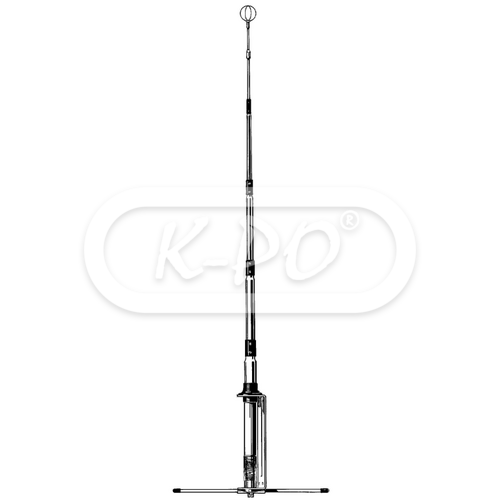

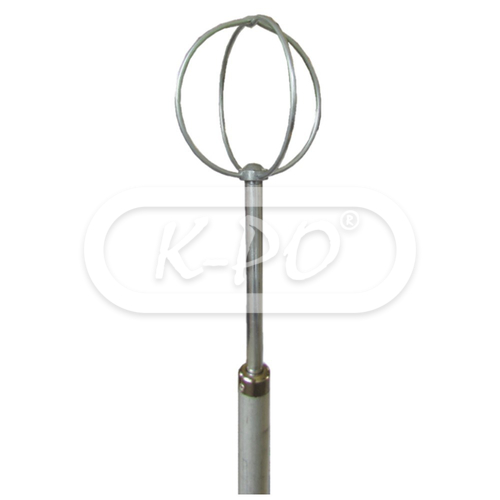

5/8 λ ground plane aluminium CB and 10 meter band base antenna with anti-static top and side radials. Transparant coil cover.

Frequentie bereik: 26.4 - 29.0 MHz tunable

Volgende werkdag verstuurd

€ 78,95 (65.25 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 5/8 λ ground plane
• Gain: 1.2 dBd, 3.35 dBi
• VSWR: ≤ 1.3
• Bandwidth: 1600 kHz ≤ 2.0
• Power continues: 250 Watts (CW)
• Power peak: 750 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Feed system: Transformer DC-ground / base

Fysieke eigenschappen

• Materials: Aluminium, copper, galvanized steel, nylon
• Mast Ø: 35 - 42 mm
• Max wind resistance: 130 km/h
• Height: 5950 mm
• Weight: 2500 gram
• Mounting type: On mast
• Antenna connector: UHF-female
• Radial length: 1320 mm

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian

Downloads

• Informatieblad: Id 037 06 12 2019 gpe gps
