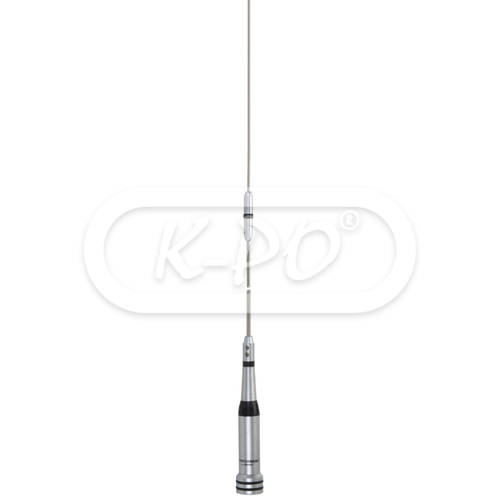

Sirio - HP 2000 C

Artikelnummer: 992001

Fabrieksnummer: 2210205.05

VHF radialless vehicular antenna working on the 2 meter band, 137 - 157 MHz @ ≤ 2.0, without tuning. The very best materials have been used to guarantee the maximum strength and the best performance. The whip made of 17/7 PH stainless steel, has an inclination system that allows the 90 tilting without using keys or tools. Also a particular attention has been paid to the UHF-male connector with a gold plated center pin, PTFE insulator and silicone rubber gasket for a perfect waterproofing.

Frequentie bereik: 137 - 157 MHz

Volgende werkdag verstuurd - Stock: 4

€ 54,50 (45.04 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: C-loaded
• Gain: 2 dB
• VSWR: ≤ 1.2 on center frequency / ≤ 2.0 @ 137 - 157 MHz
• Power continues: 150 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 1410 mm
• Weight: 320 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

In de verpakking

• Antenna: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 100 18 06 2015 hp2000
