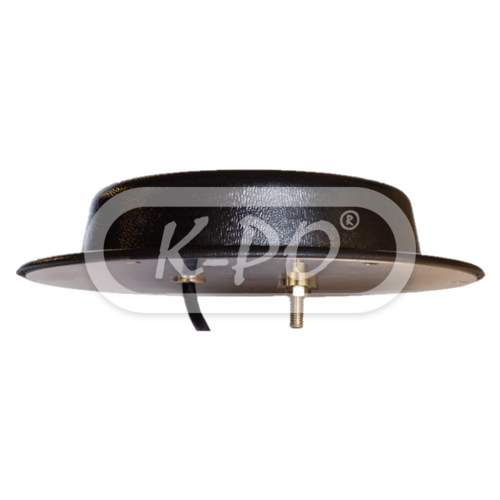

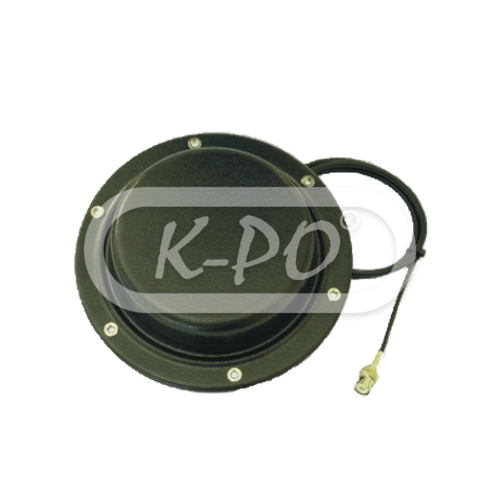

Sirio - LPA 420

Artikelnummer: 420470

Fabrieksnummer: 2219003/420

Low profile mobile antennas for UHF band, 420 - 470 MHz, designed for use on vehicles operating under severe height limitations such as buses, trains, trams, etc.

This antenna is suitable for ceiling mount installation too.The radome is weatherproof to ensure long life. Radiation is omni-directional and the antenna is vertically polarized.

Frequentie bereik: 420 - 470 MHz tunable

Vandaag verstuurd

€ 79,94 (66.07 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Low profile dipole
• Gain: 2 dBi
• VSWR: ≤ 1.5
• Bandwidth: 10.5 MHz ≤ 2.0
• Power continues: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 1 meter / RG 58

Fysieke eigenschappen

• Materials: Aluminium, brass, thermoplastic UV stabilized
• Mast Ø: 36 mm
• Weight: 400 gram
• Mounting type: Thru-holes
• Diameter antenna Ø: 183 mm

In de verpakking

• Antenna: Yes
• Radio connector: BNC-male
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 391 13 06 2007 LPA Series
