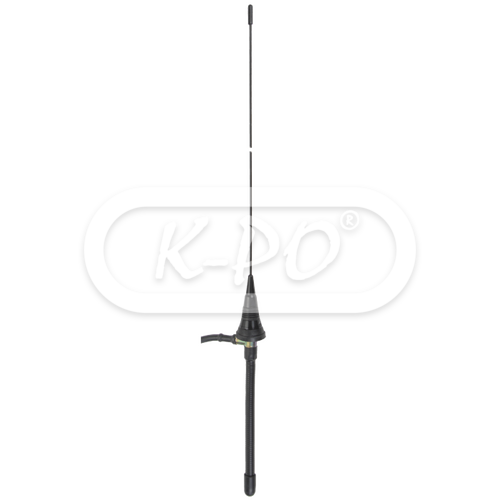

Sirio - MD 118-137 Aviation

Artikelnummer: 221480626

Fabrieksnummer: 2214806.26

Barcode: 8056182114761

Dipole 1/2 λ with loaded radial covering the frequency range of 118 - 137 MHz for aeronautical band. The whip is made of black chromed stainless steel and all the metallic components are of brass or steel to get the best robustness. Thanks to its loaded radial MD 118-137 Aviation doesn’t need any metallic ground plane and it is particularly recommended for installation on small aircraft.

Frequentie bereik: 118 - 137 MHz

Niet op voorraad - Levertijd in overleg

€ 40,95 (33.84 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Dipole 1/2 λ with loaded radial
• Gain: 0 dBd, 2.15 dBi
• Power continues: 50 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter / RG 58
• Radial length: 165 mm

Fysieke eigenschappen

• Materials: Chromed brass, stainless Steel 17/7 PH, nylon, zamak
• Max wind resistance: 220 km/h
• Length: 760 mm (total length)
• Weight: 330 gram
• Mounting type: Thru-hole
• Antenna connector: FME-female

In de verpakking

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 351 06 10 2005
