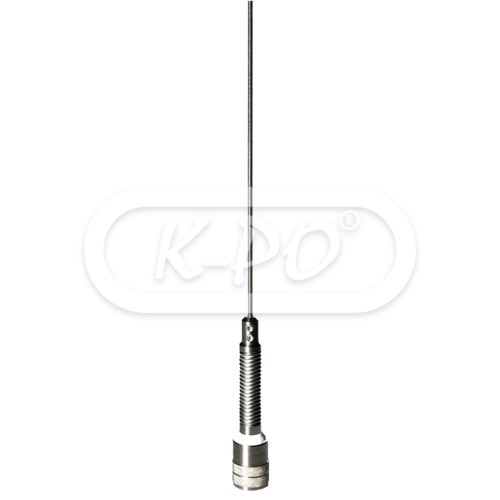

Sirio - MGA 108-550 PL

Artikelnummer: 243150505

Fabrieksnummer: 2431505.05

1/4 λ mobile antenna covering the frequency range of 108 - 550 MHz. Tuning on frequency by using the enclosed cutting diagram. It is made of 17/7 PH stainless steel and supplied with a UHF-male (PL-259) connector suitable for the fitting on magnetic mounts, angular connector or portable RTx.

Frequentie bereik: 108 - 550 MHz tunable by cutting

Volgende werkdag verstuurd - Stock: 7

€ 14,96 (12.36 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 1/4 λ
• VSWR: See the product manual under downloads
• Bandwidth: See the product manual under downloads
• Power continues: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 670 mm, height depending on frequency
• Weight: 55 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

In de verpakking

• Antenna: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 375 15 06 2006 SMA 108 550 PL
