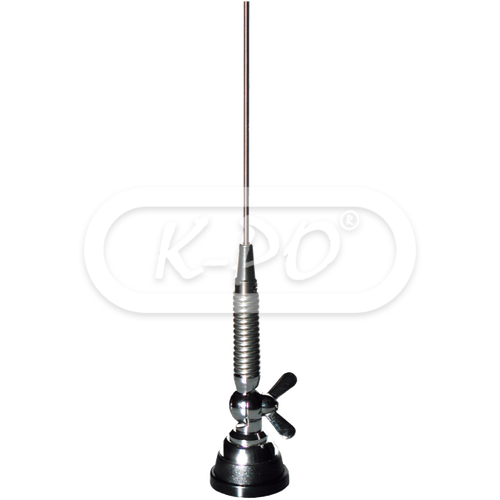

Sirio - MGA 108-550 S

Artikelnummer: 2213805

Fabrieksnummer: 2213805.28

1/4 λ mobile antenna covering the frequency range of 108 - 300 MHz. Tuning on frequency by using the enclosed cutting diagram. MGA series is made of 17/7 PH stainless steel rod and stainless steel spring. Can be used for VHF and UHF mobile radios, taxi radios and other applications.

Frequentie bereik: 108 - 300 MHz tunable by cutting

Volgende werkdag verstuurd

€ 30,95 (25.58 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 1/4 λ
• VSWR: See the product manual under downloads
• Bandwidth: See the product manual under downloads
• Power continues: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter / RG 58

Fysieke eigenschappen

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 705 mm, height depending on frequency
• Weight: 420 gram
• Mounting type: Thru-hole

In de verpakking

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 376
