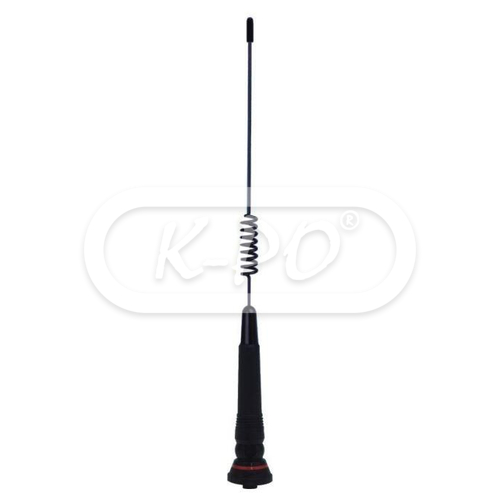

Sirio - Micro 30 S

Artikelnummer: 220650638

Fabrieksnummer: 2206506.38

Short CB antenna with the looks of a cellular antenna. Can be put in an 90° angle and detachable for car-wash. Replaces the discontinued Sirio Cellular 33 S

Frequentie bereik: 27 - 27.5 MHz

Vandaag verstuurd - Stock: 4

€ 29,95 (24.75 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Base loaded
• VSWR: ≤ 1.4
• Bandwidth: 600 kHz ≤ 2.0
• Power continues: 10 Watts (CW)
• Power peak: 30 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Fysieke eigenschappen

• Materials: Copper, stainless steel 17/7 PH, thermoplastic UV stabilized
• Height: 325 mm
• Weight: 80 gram
• Mounting type: Thru-hole

In de verpakking

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Informatieblad: Id 287 micro30 06 11 2007
