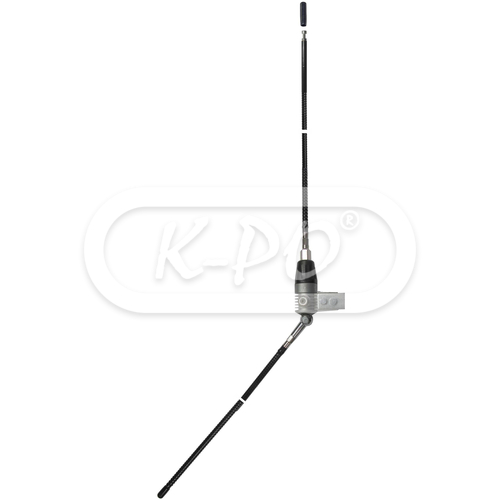

Sirio - New Boomerang 27 W

Artikelnummer: 87

Fabrieksnummer: 2101115.00

Barcode: 8056182113085

New upgraded version: shorter radial, increased power up to 300 Watts. Fine tuning on main radiator of the Sirio New Boomerang 27 W.

1/4 Wave Ground plane Boomerang antennas working on 27 MHz. Particularly suitable for balcony installation where
reduced dimensions are required. They are made of high quality materials and supplied with a very strong die-cast Zamac mount. Available in 2 versions: Sirio New Boomerang 27 A whose main whip is completely made of anti-corodal aluminium tubes and Sirio New Boomerang 27 W whose whip is made of fiberglass rod with helical winding to reduce the length and guaranteeing a good performance. Both models have a fiberglass radial with helical winding.

Frequentie bereik: 26.8 - 27.6 MHz tunable

Niet op voorraad - Levertijd in overleg

€ 57,95 (47.89 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 1/4 λ ground plane boomerang
• Gain: 0 dBd, 2.15 dBi
• VSWR: ≤ 1.2
• Bandwidth: 800 kHz ≤ 2.0
• Power continues: 300 Watts (CW)
• Power peak: 900 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Copper, galvanized steel, fiberglass, nylon
• Max wind resistance: 140 km/h
• Height: 2180 mm
• Weight: 750 gram
• Mounting type: On mast with supplied bracket
• Antenna connector: UHF-female
• Radiator length: 1330 mm
• Radial length: 1280 mm

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian

Downloads

• Informatieblad: Id 048 06 12 2019 boomeang serie
