Sirio - New Vector 4000

Artikelnummer: 200412

Fabrieksnummer: 2100701.00

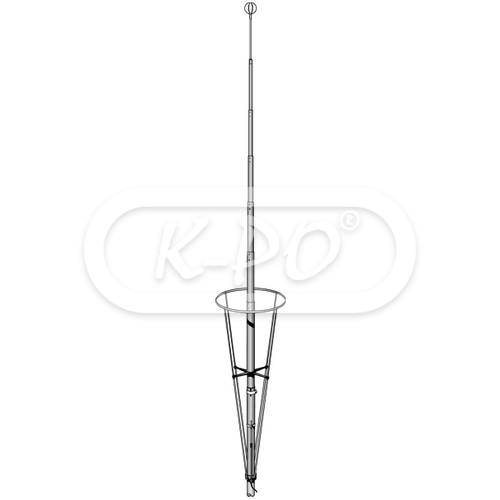

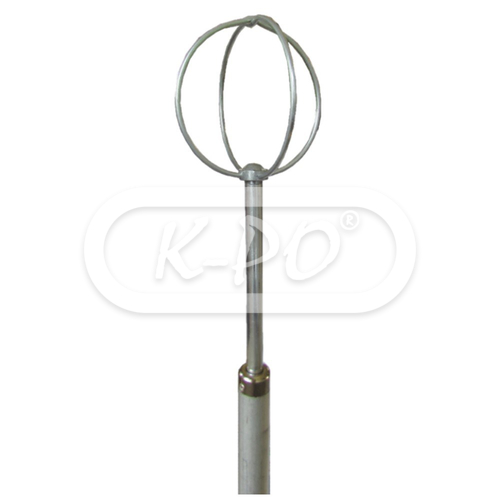

3/4 λ coaxial J-pole base antenna with gamma match for the CB and 10 meter band. Highest gain of all Sirio aluminium CB base antennas. Complete with anti-static top.

Frequentie bereik: 27 - 28.5 MHz tunable

Volgende werkdag verstuurd - Stock: 2

€ 155,94 (128.88 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 3/4 λ coaxial J-pole
• Gain: 2 dBd, 4.15 dBi
• VSWR: ≤ 1.2
• Bandwidth: 1400 kHz ≤ 2.0
• Power continues: 1000 Watts (CW)
• Power peak: 3000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Feed system: Gamma match

Fysieke eigenschappen

• Materials: Aluminium, brass, galvanized steel, nylon
• Mast Ø: 35 - 42 mm
• Max wind resistance: 130 km/h
• Height: 8480 mm
• Weight: 4700 gram
• Mounting type: On mast
• Antenna connector: UHF-female

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian

Downloads

• Informatieblad: Id 041 10 09 2011 new vector4000
