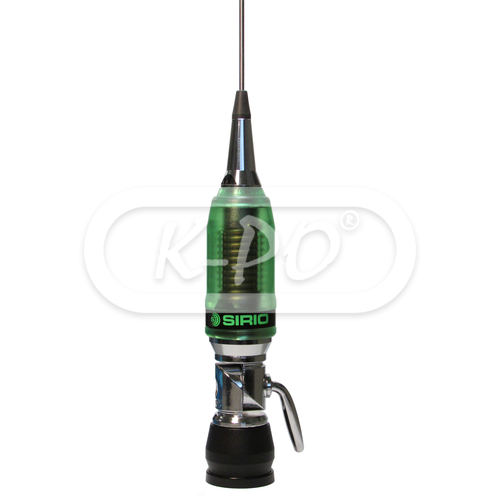

Sirio - Performer 5000 LED

Artikelnummer: 2005001

Fabrieksnummer: 2218505.50/LED

Unique LED PCB that light up when transmitting. High power vehicular antenna working on 27 MHz or 10 meter band. Low loss coil, 2.5 mm copper wire.

Frequentie bereik: 27 - 30 MHz

Vandaag verstuurd - Stock: 1

€ 64,95 (53.68 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 2300 kHz (200 channels) ≤ 2.0
• Power continues: 600 Watts (CW) with the supplied RG 58 cable
• Power peak: 600 Watts (CW) with the supplied RG 58 cable
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Fysieke eigenschappen

• Materials: Copper, chromed brass, stainless steel 17/7 PH, thermoplastic UV
• Height: 1965 mm
• Weight: 650 gram
• Mounting type: Thru-hole

In de verpakking

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Informatieblad: Id 440 03 02 2016 p 5000 led
