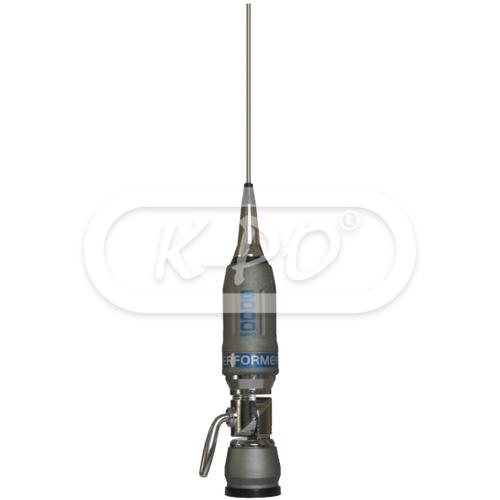

Sirio - Performer 5000 PL

Artikelnummer: 221850551

Fabrieksnummer: 2218505.51

One of the best alternatives for the discontinued Sirtel Santiago 1200. High power vehicular antenna working on 27 MHz or 10 meter band. Low loss coil, 2.5 mm copper wire.

Frequentie bereik: 27 - 30 MHz

Niet op voorraad - Levertijd in overleg

€ 65,95 (54.5 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 2300 kHz (200 channels) ≤ 2.0
• Power continues: 1500 Watts (CW)
• Power peak: 5000 Watts (CW) / duty cycle, 5 seconds on, 5 seconds off
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Copper, chromed brass, stainless steel 17/7 PH, thermoplastic UV
• Height: 1965 mm
• Weight: 650 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

In de verpakking

• Antenna: Yes
• Installation manual: English, Italian

Downloads

• Informatieblad: Id 371 05 06 2014 series 5000
