Sirio - SCO-868-4 N-f

Artikelnummer: 211162000

Fabrieksnummer: 2111620.00

Barcode: 8056182110268

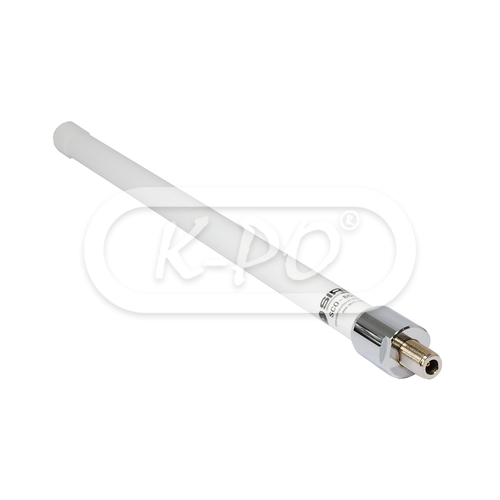

New - Base station antennas conceived for ISM/LoRa system working on 868 - 870 MHz, no tuning required. Can be used for cryptomining (Helium Miner) too. The radiant colinear dipoles are made of PCB and protected by a fiberglass tube. With N female connector inIncluding the Sirio M3 bracket for wall or mast mount.

Frequentie bereik: 868 - 870 MHz

Niet op voorraad - Levertijd in overleg

€ 53,95 (44.59 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Colinear
• Gain: 2.2 dBd, 4.3 dBi
• VSWR: ≤ 1.5
• Power continues: 20 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear horizontal

Fysieke eigenschappen

• Materials: Chromed brass, galvanized steel, fiberglass, PCB
• Mast Ø: 35 - 42 mm
• Max wind resistance: 120 km/h
• Height: 500 mm
• Weight: 280 gram
• Mounting type: On mast, on wall, thru hole
• Antenna connector: N-female

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 459 31 05 2018 sco 868 4 sco 868 6
