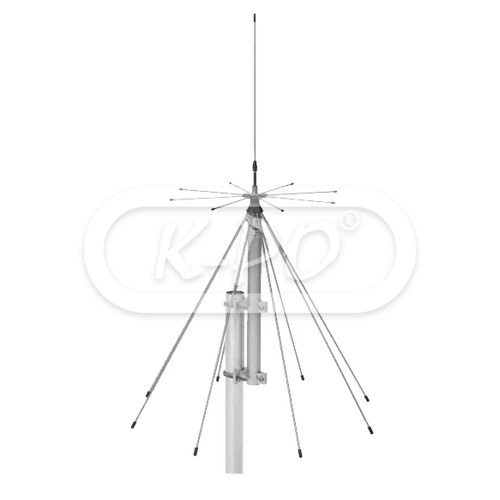

Sirio - SD 2000 N

Artikelnummer: 2042000
Fabrieksnummer: 2109005.00

Wide-band discone antenna working on 100 - 2000 MHz in reception and on many amateur frequencies in transmission (2m, 70cm, 33cm and 23cm band). It is made of stainless steel, chromed brass and anodized aluminium to guarantee the best efficiency and performance. Easy to fit, it can be suitable for the installation everywhere. The vertical whip can be removed whenever the 145 MHz frequency is not required.

Frequentie bereik: TX: 130 - 160 / 221 - 445 / 610 - 682 / 860 - 960 / 1075 - 1500 / 1610 - 2000 MHz, RX: 100 - 2000 MHz
Vandaag verstuurd
€ 89,95 (74.34 excl. 21% BTW)

Elektrische eigenschappen

  • Electrical type: Discone
  • Gain: 0 dBd, 2.15 dBi
  • VSWR: See the product manual under downloads
  • Power continues: 200 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Fysieke eigenschappen

  • Materials: Aluminium, chromed brass, stainless steel, nylon
  • Mast Ø: 25 - 54 mm
  • Height: 940 mm
  • Weight: 1020 gram
  • Mounting type: On mast
  • Antenna connector: N-female

In de verpakking

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
