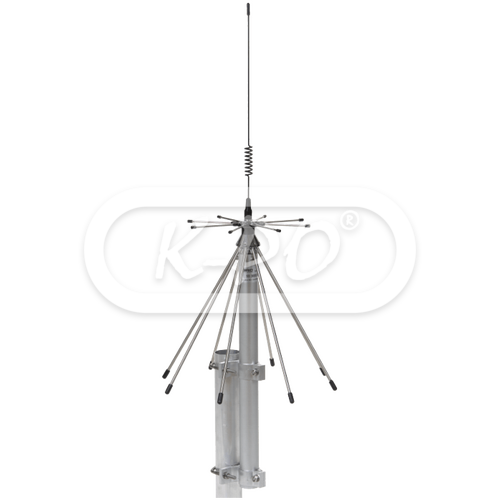

Sirio - SD 3000 N

Artikelnummer: 203000

Fabrieksnummer: 2109305.00

Wide-band discone antenna working on 300-3000 MHz in reception and on many amateur frequencies in transmission (70cm, 33cm, 23cm, 13cm). It is made of stainless steel, chromed brass and anodized aluminium to guarantee the best efficiency and performance. Easy to fit, it can be suitable for the installation everywhere.

Frequentie bereik: TX: 340 - 535 / 545 - 960 / 1180 - 1380 / 1660 - 1910 / 1980 - 3000 MHz, RX: 300 - 3000 MHz

Vandaag verstuurd

€ 79,94 (66.07 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Discone
• Gain: 0 dBd, 2.15 dBi
• VSWR: See the product manual under downloads
• Power continues: 200 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Aluminium, chromed brass, stainless steel, nylon
• Mast Ø: 25 - 54 mm
• Height: 725 mm
• Weight: 830 gram
• Mounting type: On mast
• Antenna connector: N-female

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 274 04 06 1999 sd 3000
