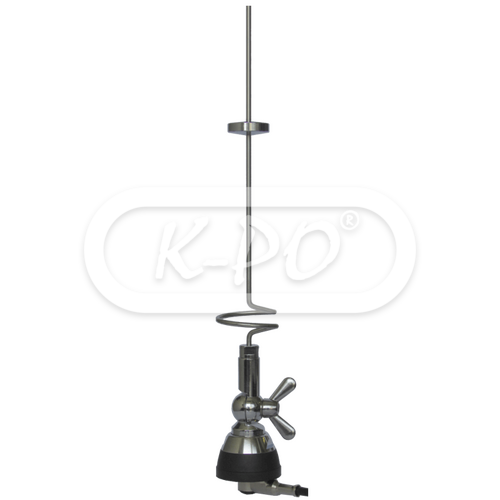

Sirio - SDB 702

Artikelnummer: 221000532

Fabrieksnummer: 2210005.32

Dual-band vehicular antenna working on 141 - 149 / 430 - 440 MHz, no tuning required. The very best materials have been used to guarantee the maximum strength and the best performance. The whip, made of 17/7 PH stainless steel, has an inclination system.

Frequentie bereik: 141 - 149 / 430 - 440 MHz no tuning required

Niet op voorraad - Levertijd in overleg

€ 29,95 (24.75 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 141 - 149 MHz: 1/2 λ / 430 - 440 MHz: 5/8 λ
• Gain: 141 - 149 MHz: 0 dB / 430 - 440 MHz: 2 dB
• VSWR: 141 - 149 MHz: ≤ 1.8 / 430 - 440 MHz: ≤ 1.4
• Bandwidth: 141 - 149 MHz: ≥ 8 MHz / 430 - 440 MHz: ≥ 20 MHz
• Power continues: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 470 mm
• Weight: 360 gram
• Mounting type: Thru-hole

In de verpakking

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 463 11 06 2019 sdb 702
