Sirio - Signal Keeper

Artikelnummer: 200037

Fabrieksnummer: 2101301.00

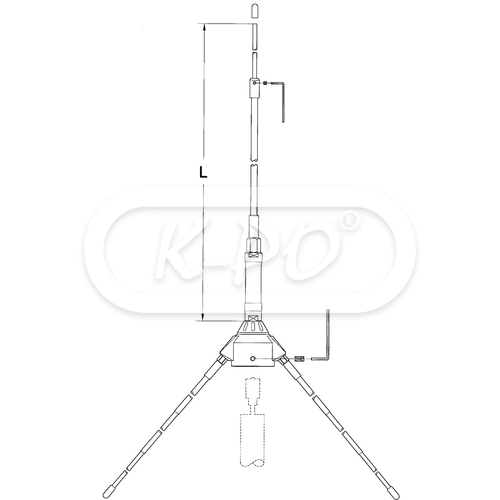

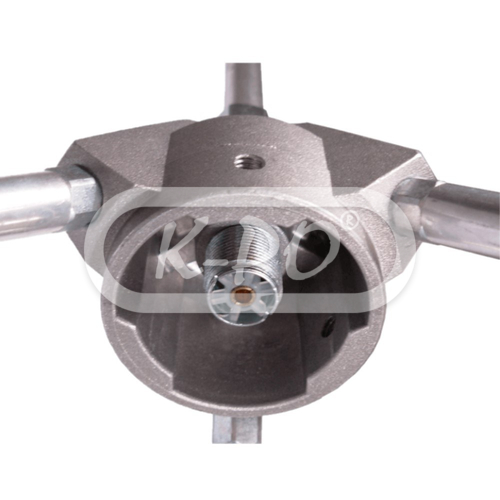

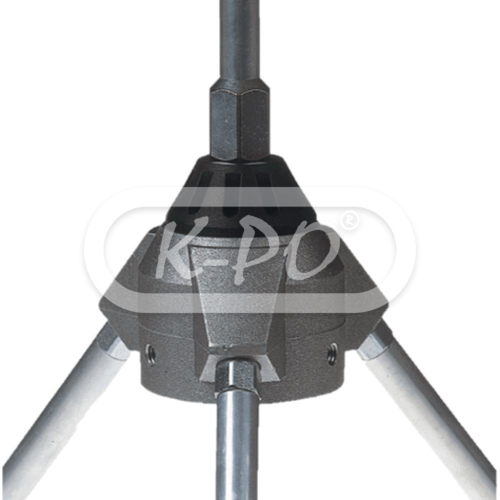

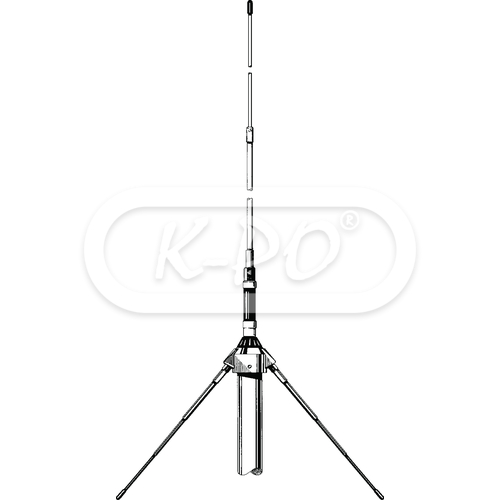

1/4 λ base loaded ground plane base antenna for CB and 10 meter band use. It is entirely made of non-corrosive aluminium and assembled on a strong die-cast base which allows an easy and safe installation assuring very good performances.

Frequentie bereik: 26 - 28 MHz (no tuning required)

Niet op voorraad - Levertijd in overleg

€ 67,95 (56.16 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 1/4 λ base loaded ground plane
• Gain: 0 dBd, 2.15 dBi
• VSWR: ≤ 1.2
• Bandwidth: 850 kHz ≤ 2.0
• Power continues: 100 Watts (CW)
• Power peak: 300 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Feed system: Direct / center

Fysieke eigenschappen

• Materials: Aluminium, chromed brass, stainless steel, nylon, zamak
• Mast Ø: 35 - 40 mm
• Max wind resistance: 130 km/h
• Height: 2370 mm
• Weight: 640 gram
• Mounting type: On mast
• Antenna connector: UHF-female

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian

Downloads

• Informatieblad: Signal keeper
