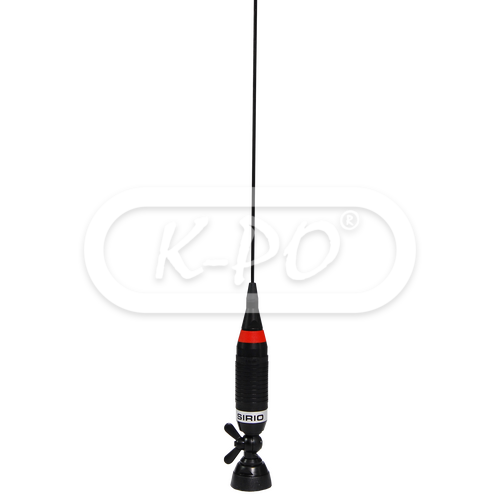

Sirio - SKA 140-175 S

Artikelnummer: 220670629

Fabrieksnummer: 2206706.29

5/8 λ VHF antenna for mobile use working on 138-175 MHz. Tuning on frequency by using the enclosed cutting diagram. It's bottom coil allows very good impedance adjustment and it conic stainless steel whip is very flexible and completely black chromed. All the metallic components are made of chromed brass or stainless steel.

Frequentie bereik: 138 - 175 MHz tunable by cutting

Volgende werkdag verstuurd - Stock: 6

€ 29,95 (24.75 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 5/8 λ
• Gain: 1.5 dB
• VSWR: ≤ 1.2 at tuned frequency
• Bandwidth: 6 MHz ≤ 2.0
• Power continues: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter / RG 58

Fysieke eigenschappen

• Materials: Chromed brass, stainless steel 17/7, nylon
• Height: 1440 mm, height depending on frequency
• Weight: 280 gram
• Mounting type: Thru-hole

In de verpakking

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English
