Sirio - SO-239 angled connector with cable Sirio - SO-239 angled connector with cable Sirio - SO-239 angled connector with cable Sirio - SO-239 angled connector with cable

Sirio - SO-239 angled connector with cable

Artikelnummer: 951015
Fabrieksnummer: 2506105.00
Barcode: 8056182112736

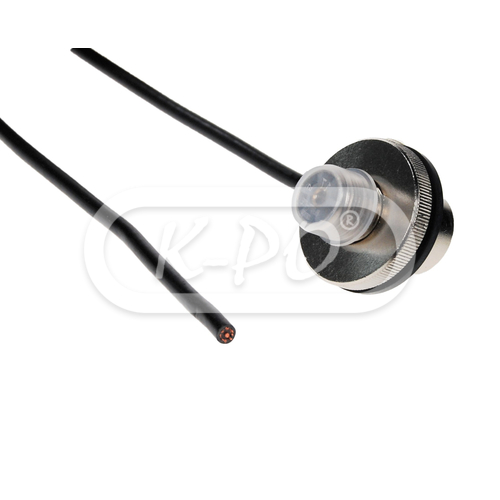

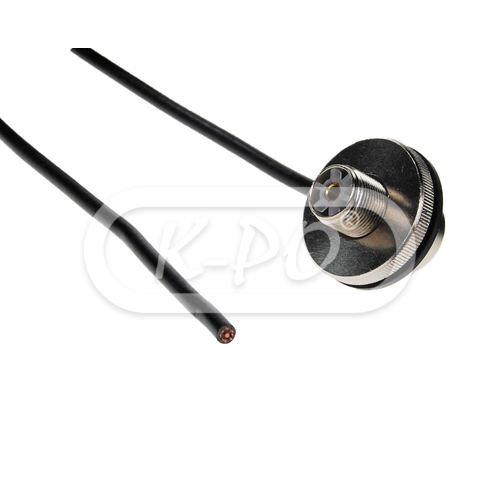

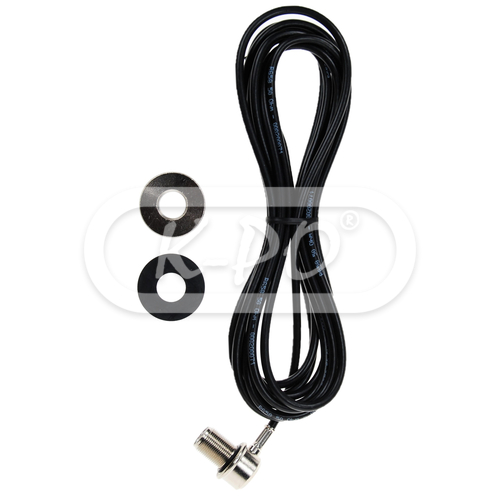

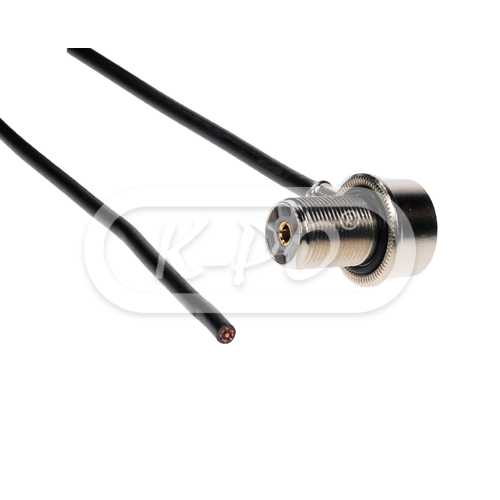

The SO-239 angled connector is a RG 58 antenna cable with mounted UHF (PL) female connector and has a length of 4 meters.

Frequentie bereik: 0-500 MHz
Vandaag verstuurd
€ 13,95 (11.53 excl. 21% BTW)

Features

  • Cable type: RG 58
  • Length: 4 meters
  • Connector: UHF (PL) female (SO-239)
  • Sheath color: Black
  • Impedance: 50 Ohm
  • Overall size: Ø 38 mm
  • Mounting hole: Ø 16 mm
  • Temperature range: -40°C to +70°C

    Attenuations dB/100m

  • 25 MHz: 7 dB
  • 50 MHz: 10 dB
  • 100 MHz: 15 dB
  • 200 MHz: 21 dB
  • 300 MHz: 26 dB
  • 400 MHz: 30 dB
  • 500 MHz: 34 dB
  • 800 MHz: 44 dB
  • 1000 MHz: 50 dB
