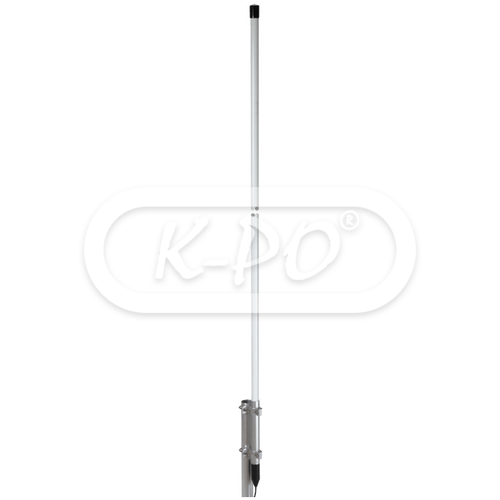

Sirio - SPO 158-5

Artikelnummer: 2115120158

Fabrieksnummer: 2115120/158

New series of wide band omni-directional base station antennas for VHF band, 158 - 175 MHz. The fiberglass protection random and the anodized aluminium parts guarantee robustness and long life to all the SPO-antennas series. They are supplied with two strong extruded aluminium brackets and stainless steel hardware for a good installation on the mast.

We can not ship this product, shipping cost on request.

Frequentie bereik: 158 - 175 MHz

Niet op voorraad - Levertijd in overleg

€ 179,95 (148.72 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Colinear
• Gain: 3 dBd, 5.15 dBi
• VSWR: ≤ 1.5
• Power continues: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Anodized aluminium, brass, stainless steel, fiberglass, EPDM rubber
• Mast Ø: 35 - 54 mm
• Max wind resistance: 160 km/h
• Height: 2590 mm
• Weight: 1950 gram
• Mounting type: On mast
• Antenna connector: N-female

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 383 ad
