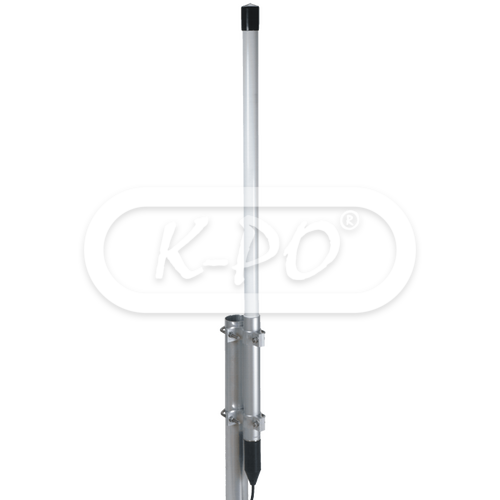

Sirio - SPO 380-2

Artikelnummer: 2115020380

Fabrieksnummer: 2115020/380

New series of wide band omni-directional base station antennas for UHF band, 380 - 470 MHz. The fiberglass protection random and the anodized aluminium parts guarantee robustness and long life to all the SPO-antennas series. They are supplied with two strong extruded aluminium brackets and stainless steel hardware for a good installation on the mast.

Frequentie bereik: 380 - 470 MHz

Vandaag verstuurd - Stock: 3

€ 119,95 (99.13 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: 1/2 λ
• Gain: 0 dBd, 2.15 dBi
• VSWR: ≤ 1.5
• Power continues: 75 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Anodized aluminium, brass, stainless steel, fiberglass, EPDM rubber
• Mast Ø: 35 - 54 mm
• Max wind resistance: 200 km/h
• Height: 780 mm
• Weight: 890 gram
• Mounting type: On mast
• Antenna connector: N-female

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 384 30 07 2009 SPO 380 2
