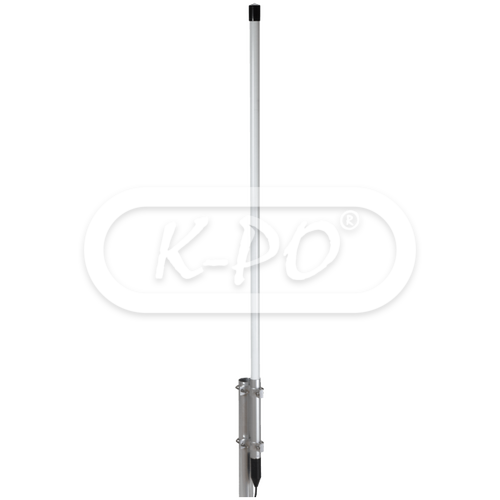

Sirio - SPO 380-5

Artikelnummer: 2115120380

Fabrieksnummer: 2115120/380

Barcode: 8056182113863

New series of wide band omni-directional base station antennas for UHF band, 380 - 430 MHz. The fiberglass protection random and the anodized aluminium parts guarantee robustness and long life to all the SPO-antennas series. They are supplied with two strong extruded aluminium brackets and stainless steel hardware for a good installation on the mast.

Frequentie bereik: 380 - 430 MHz

Vandaag verstuurd - Stock: 9

€ 159,95 (132.19 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Colinear
• Gain: 3 dBd, 5.15 dBi
• VSWR: ≤ 1.5
• Power continues: 75 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Fysieke eigenschappen

• Materials: Anodized aluminium, brass, stainless steel, fiberglass, EPDM rubber
• Mast Ø: 35 - 54 mm
• Max wind resistance: 180 km/h
• Height: 1330 mm
• Weight: 1200 gram
• Mounting type: On mast
• Antenna connector: N-female

In de verpakking

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English
