Sirio - SPO 868-915-6 Cable

Artikelnummer: 21118205

Fabrieksnummer: 2111820/5SMA

Barcode: 8056182115966

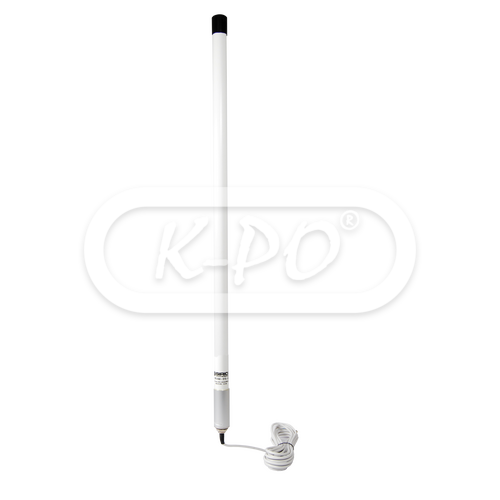

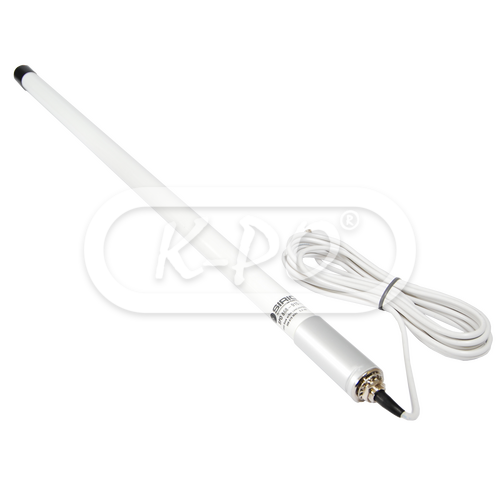

New - Base station antennas conceived for ISM/LoRa systems working on 868 MHz & 915 MHz, no tuning required. Can be used for cryptomining (Helium Miner) too. The radiant colinear dipoles are made of PCB and protected by a strong fiberglass tube. With 5 meter low loss cable and SMA-male connector.

Frequentie bereik: 868 - 915 MHz

Vandaag verstuurd

€ 79,94 (66.07 excl. 21% BTW)

Elektrische eigenschappen

• Electrical type: Colinear
• Gain: 3.8 dBd, 6 dBi
• VSWR: ≤ 1.4
• Power continues: 20 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter / White low loss

Fysieke eigenschappen

• Materials: Anodized aluminium, nickel plated brass, fiberglass, PCB
• Mast Ø: 35 - 52 mm
• Max wind resistance: 140 km/h
• Height: 840 mm
• Weight: 560 gram
• Mounting type: On mast, on wall, thru hole

In de verpakking

• Antenna: Yes
• Radio connector: SMA-male

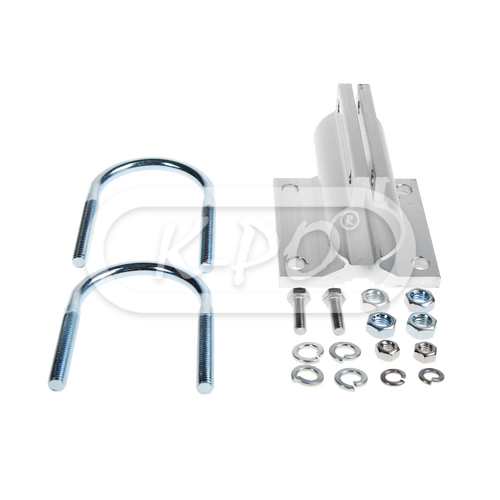

• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Informatieblad: Id 465 05 12 2019 SPO 868 915 6
